Max Hazan's Supercharged Husqvarna Replica Board Track Racer
Takes Best of Show at the October 15th 2017 Rider RoundUp at the Ranch
Photography by Jim Gianatsis • Model Corle Bunch

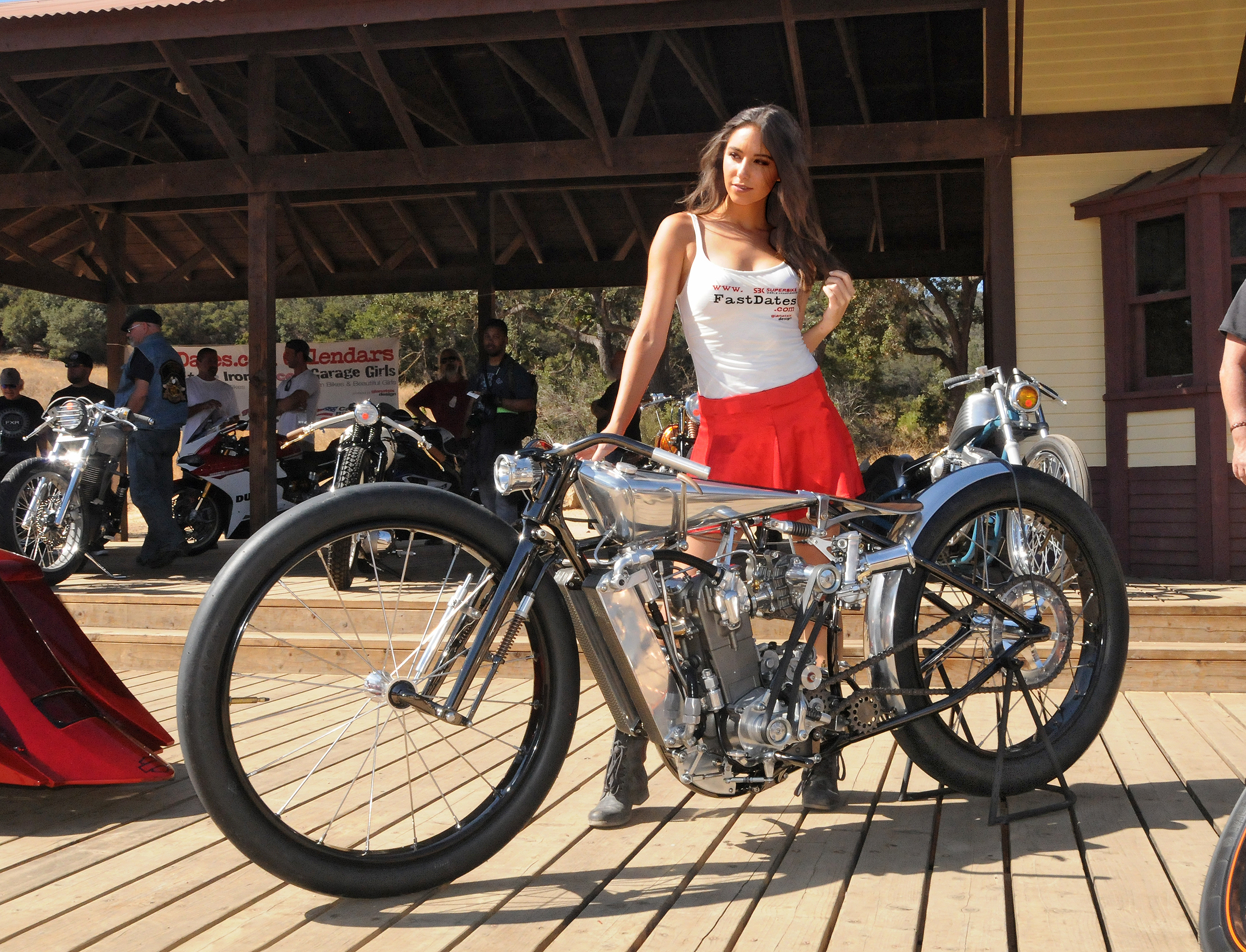

Taking Best of Show at the 2017 Rider RoundUp Calendar Bike Building Championship was Max Hazan's hand crafted Supercharged KTM Single Cafe Racer. Max, who has a storefront custom bike shop in Venice Beach, CA, built this latest customer consigned bike bike from scratch around a 420cc KTM / Husqvarna 4-stroke single cylinder dirt bike engine. Max fabricated a belt drive system off the engine's crankshaft to run a mini dual rotor Supercharger fed by a Keihin FCR39 Racing Carburetor.
The KTM single's steel tube rigid frame chases hosing the water-cooled motor was built around 26-inch classic car tires with custom built spoked wheels. The tiny rear disc brake located behind the rider's right foot, operates a shaft through the frame with a fixed primary sprocket on the other side, engaged with the drive chain, to slow the rear wheel down when the foot bake is pressed. Very original! The hand made springer front forks with hydraulic damping and a front headlight that turns with the steering stem is also unique. The bike is finished off with a beautiful had made aluminum fuel tank, handlebars and many other components. It was unanimous by anyone who saw it, that Max’s Supercharged KTM Board Track Racer Replica was the Show winner, one of the Calendar Bike Building Championship’s best ever builds in its 26 year history.

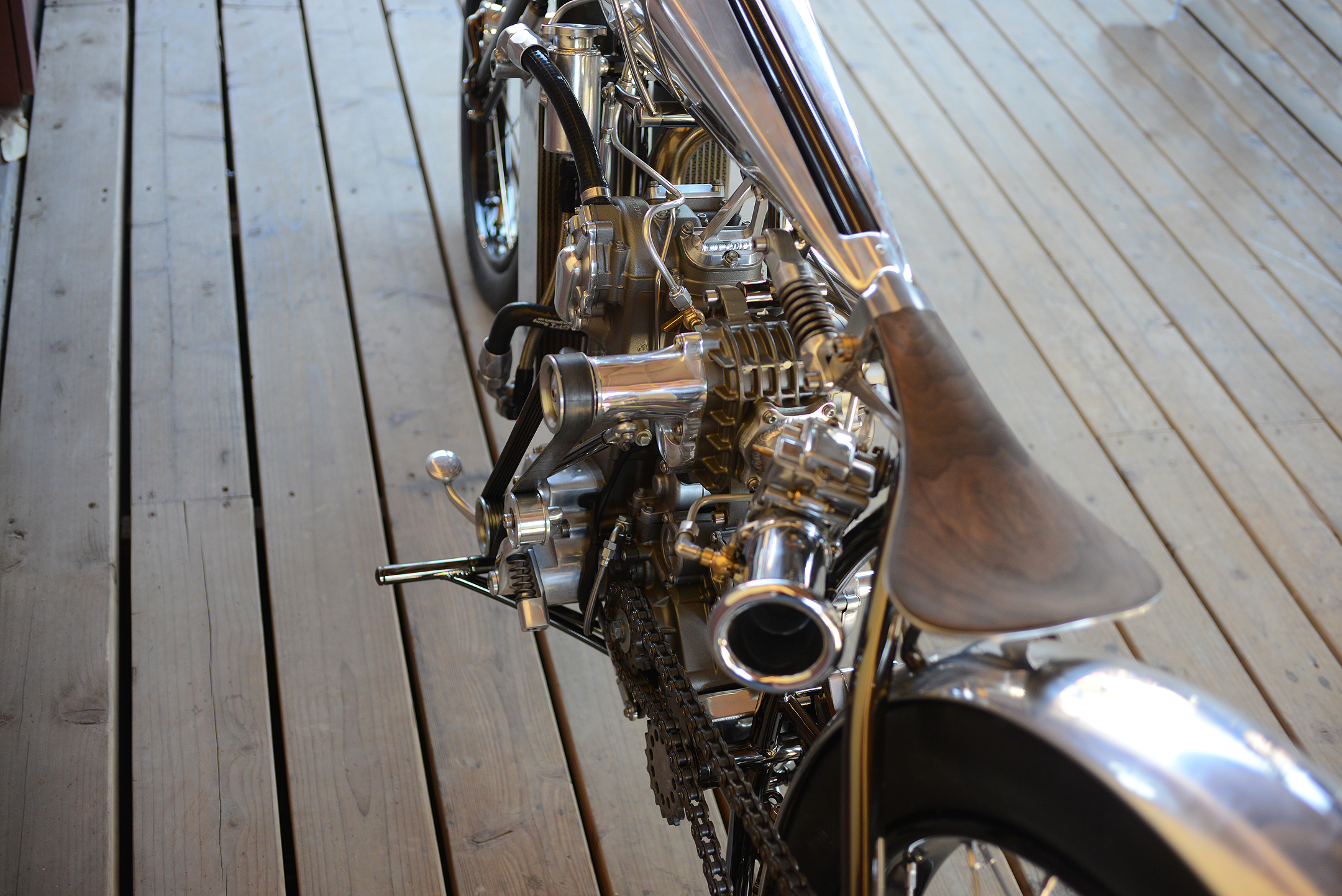

Belt driven supercharger runs from a pulley installed on the end of the engine's crankshaft. Don't get your finger caught in the belt drive!

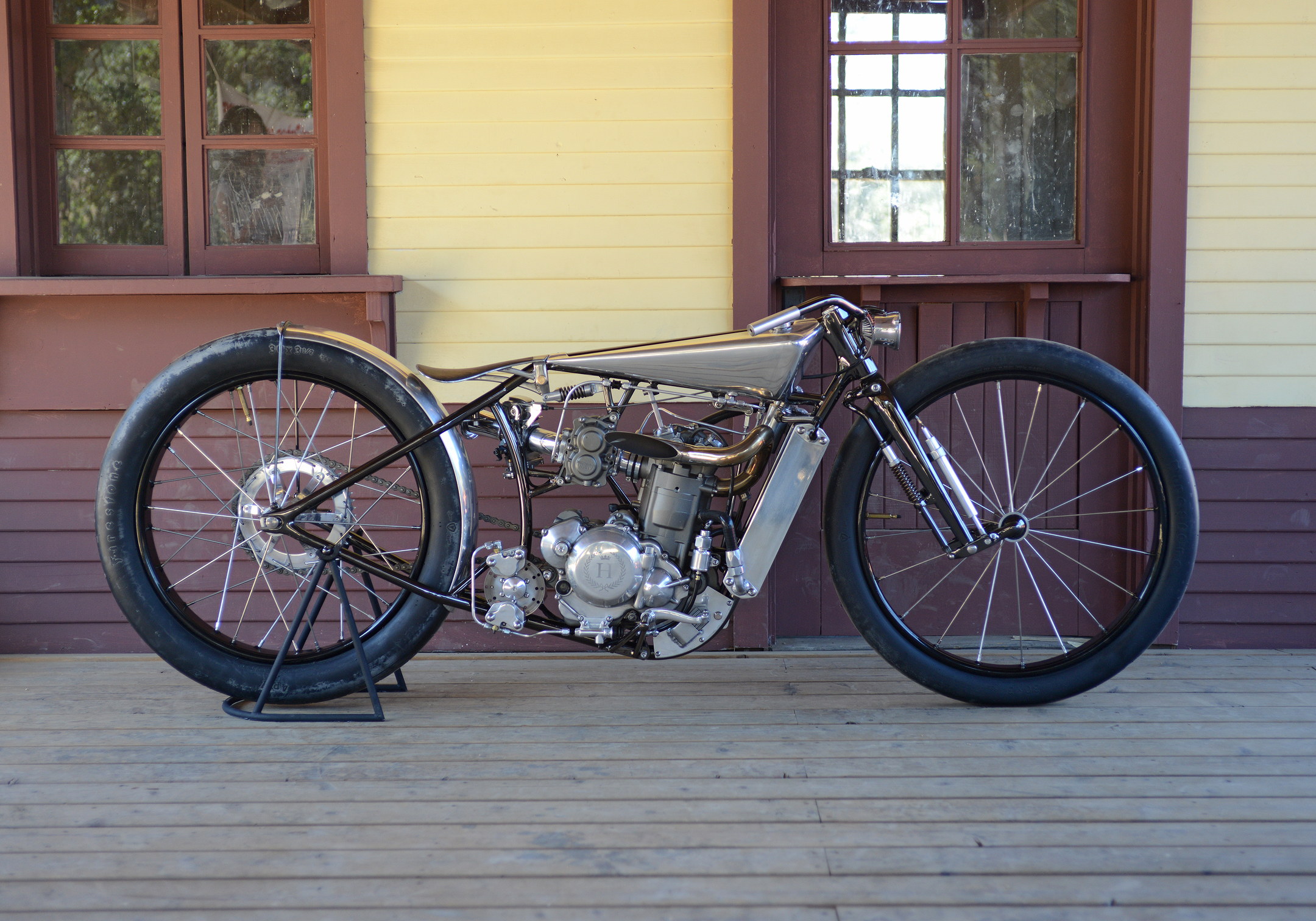

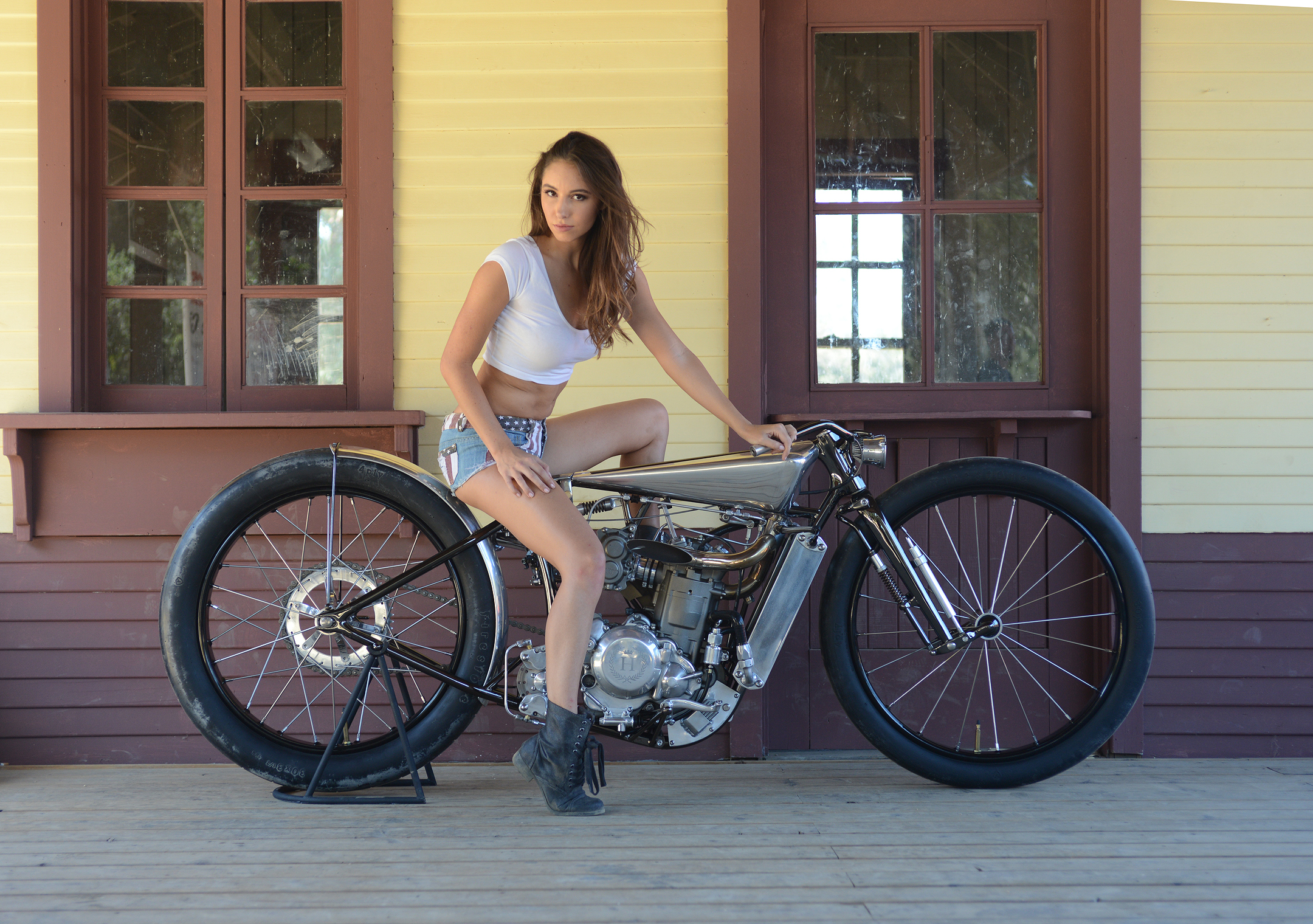

A masterpiece of mechanical beauty that will probably spend its life in the owner's living room or office.

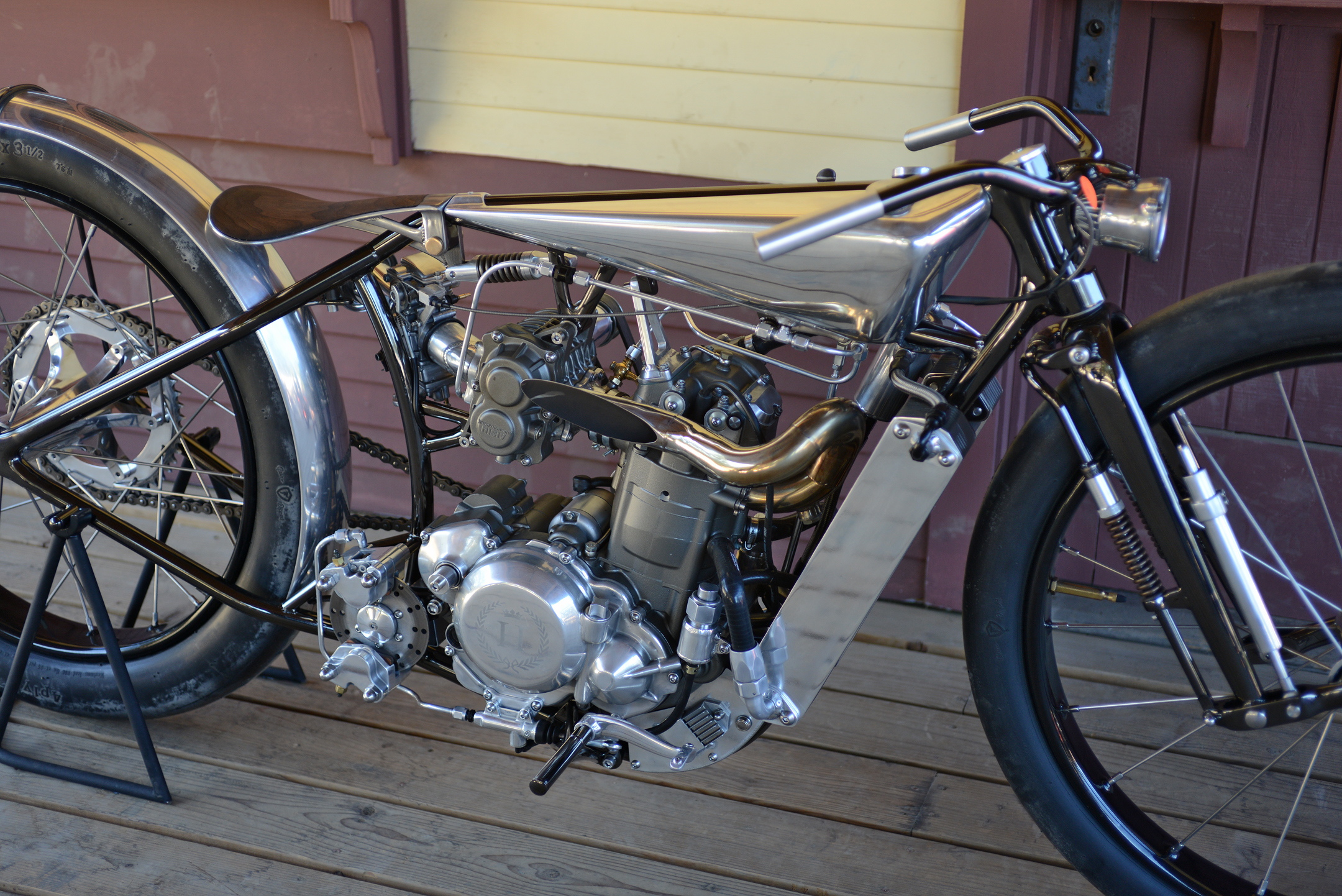

The watercooled 420xx KTM / Husqvarna single is spurced from a dirt bike, water radiator is mounted on the front down tube of the hand crated frame.

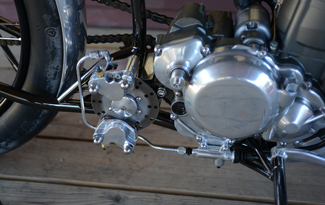

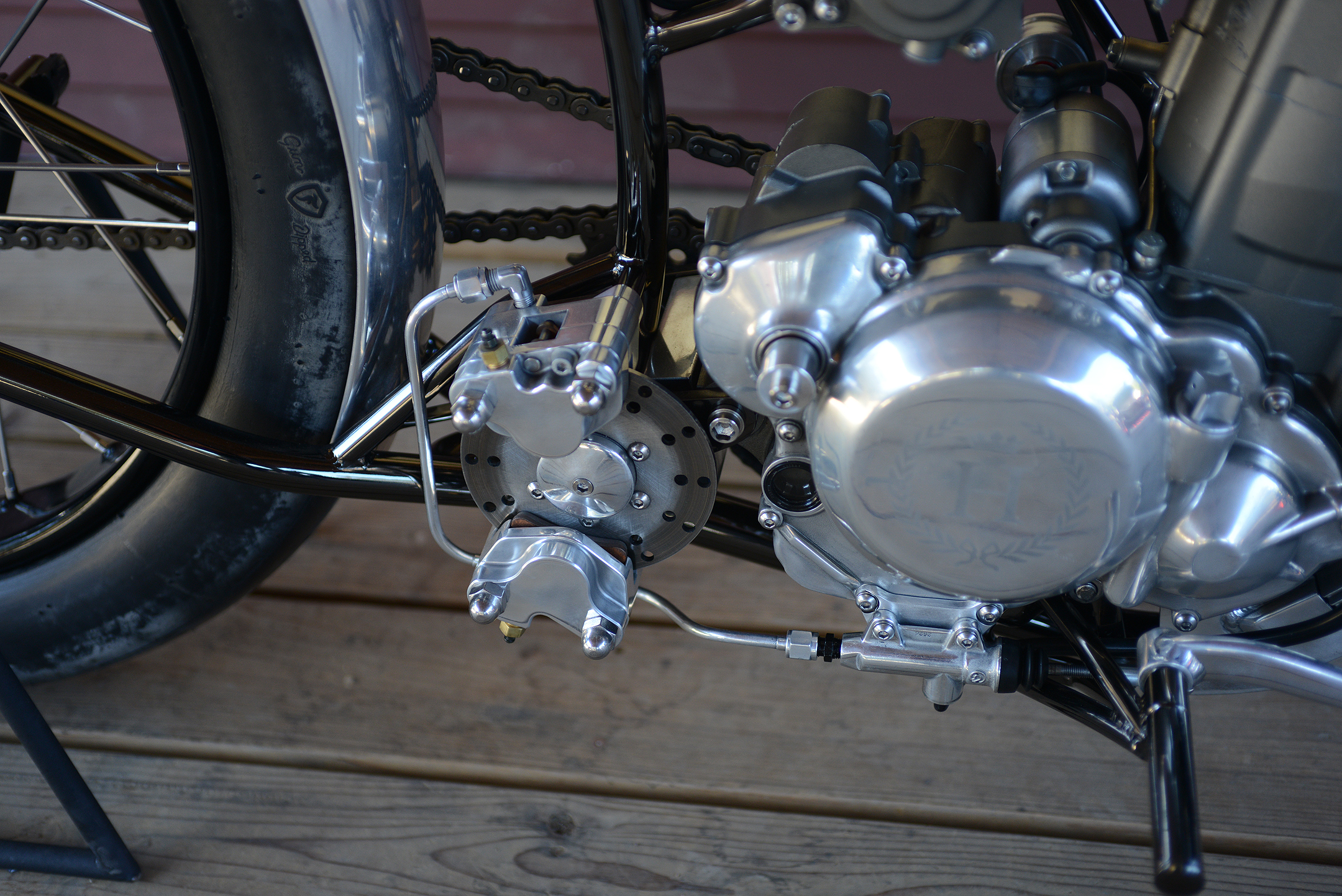

Hydraulic rear disk brake is attached to shaft that runs through the frame to a sprocket on the other side of the engine that is engaged the drive chain to the rear wheel.

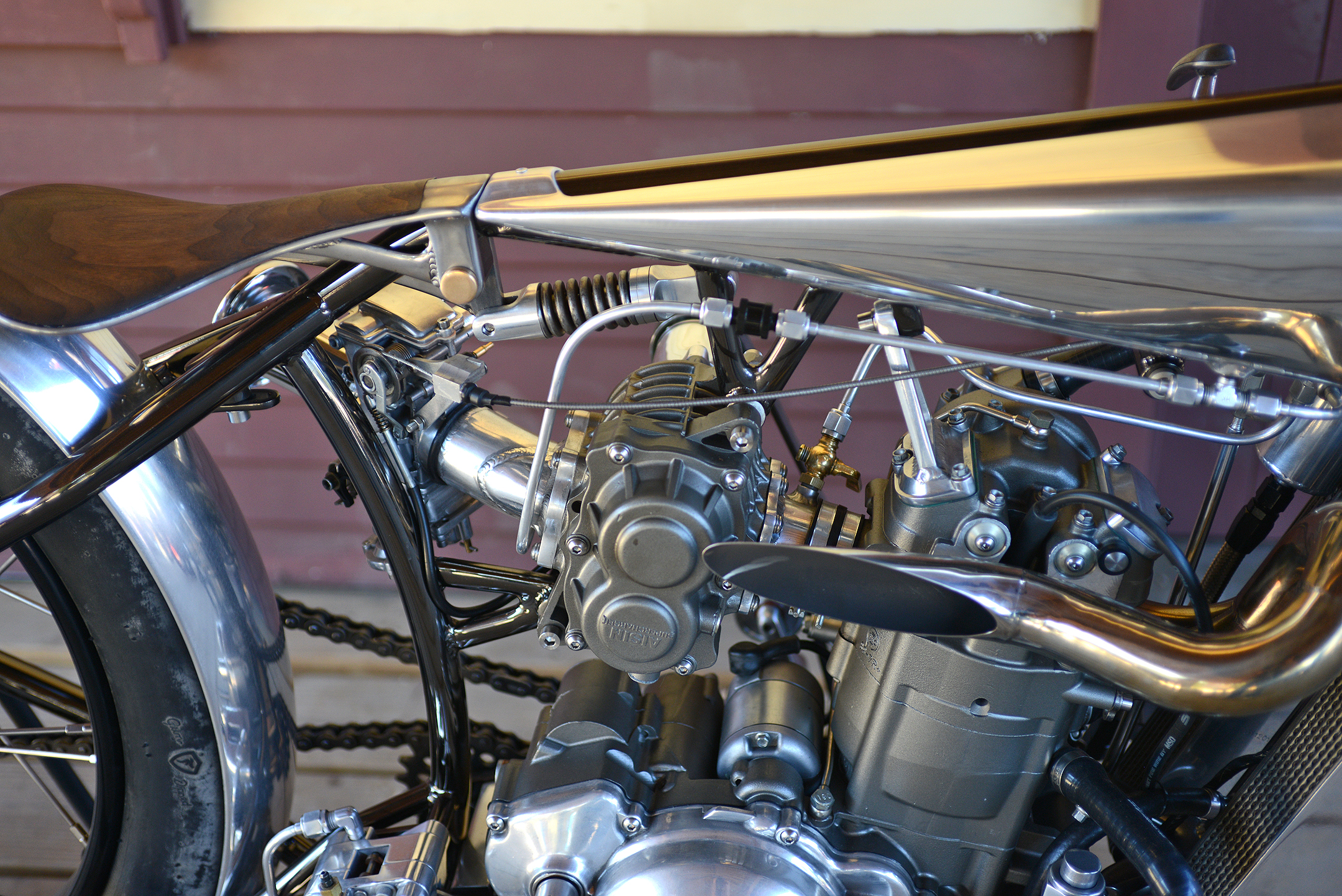

Belt driven supercharger force feeds the motor though a Keihnin FCR39 Carubetor. Slashcut exhaust has no silencing.

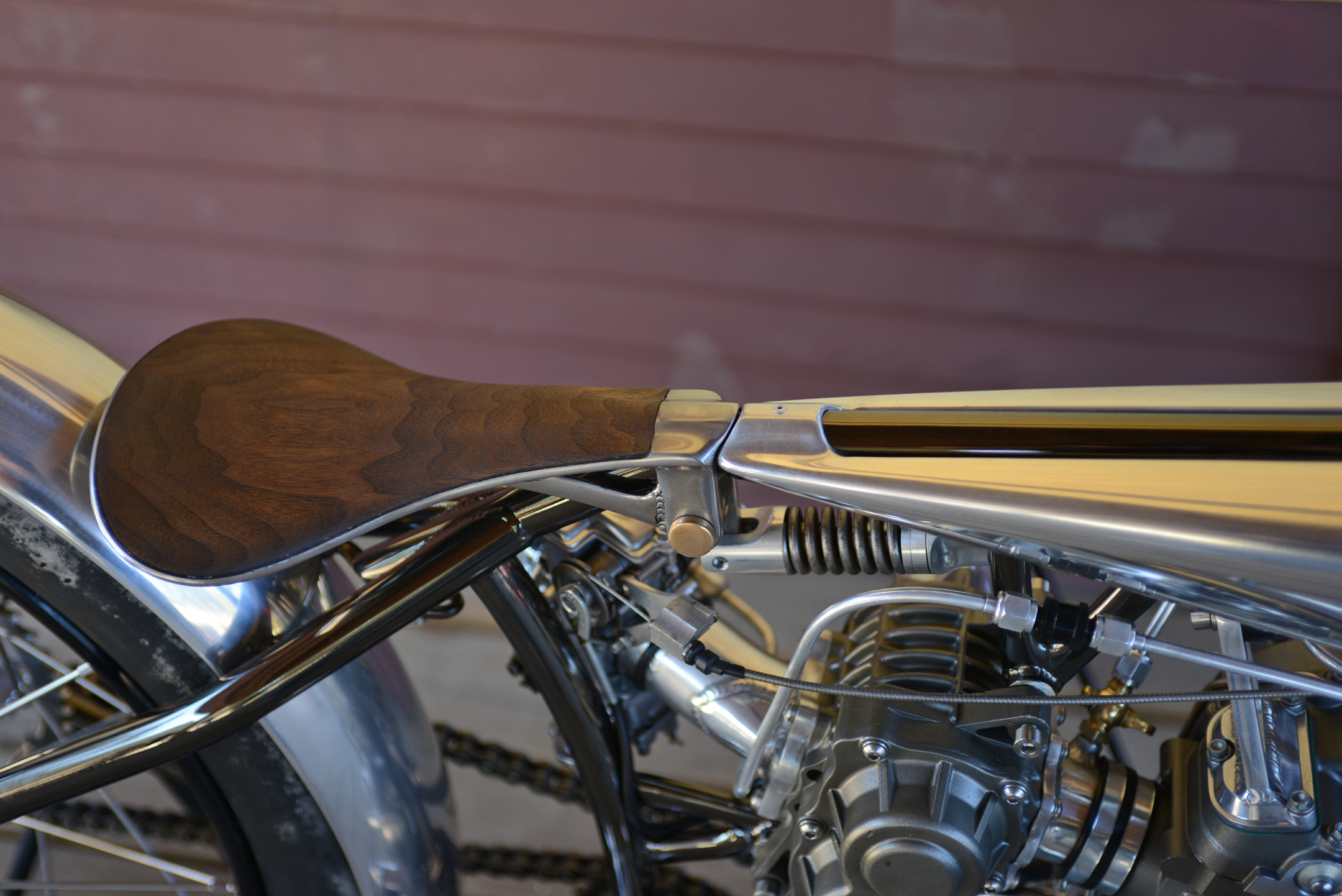

The beautifully crafted rider's seat has spring suspension, although we don't see much clearance for travel.

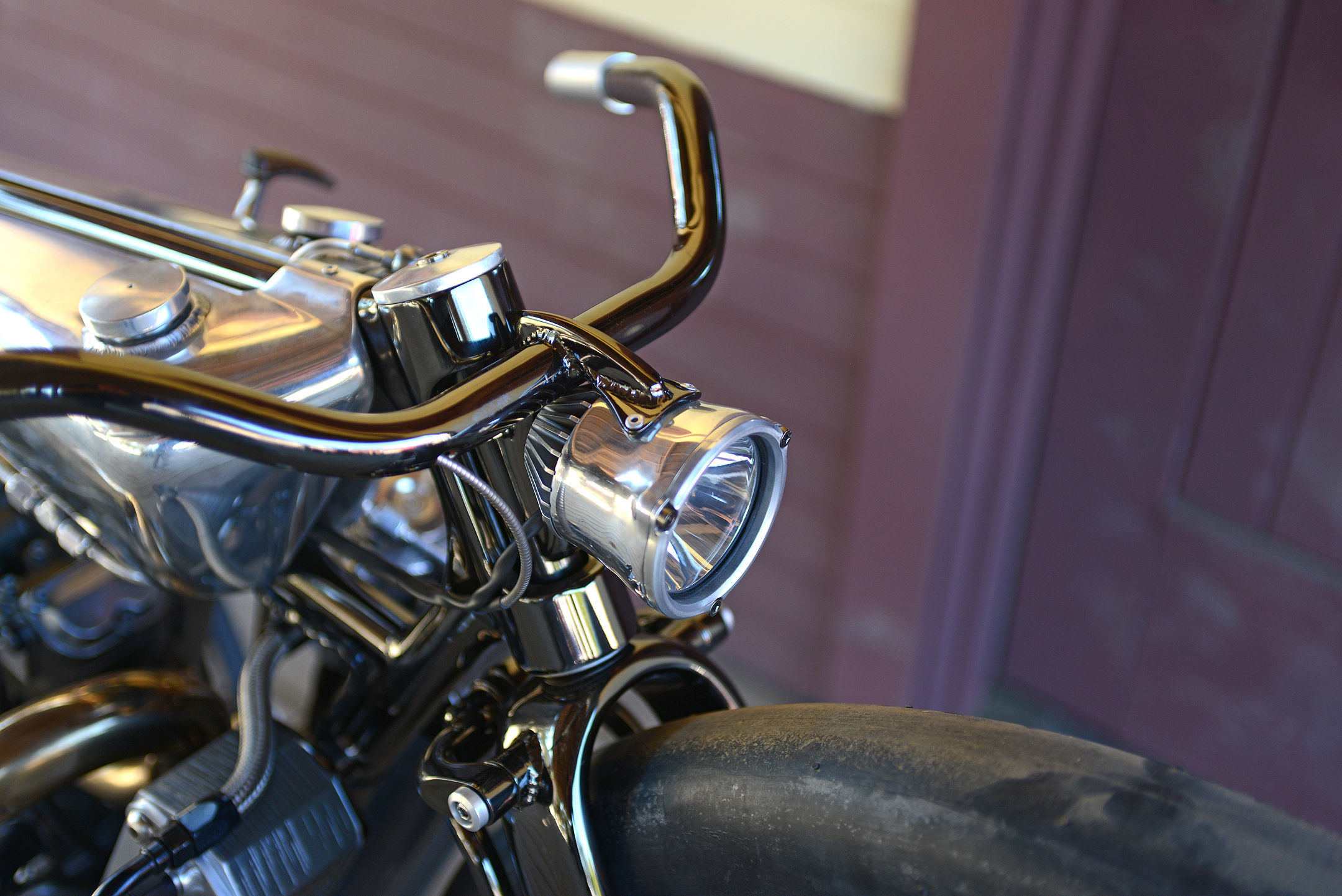

The hand made headlight turns with the steering stem.

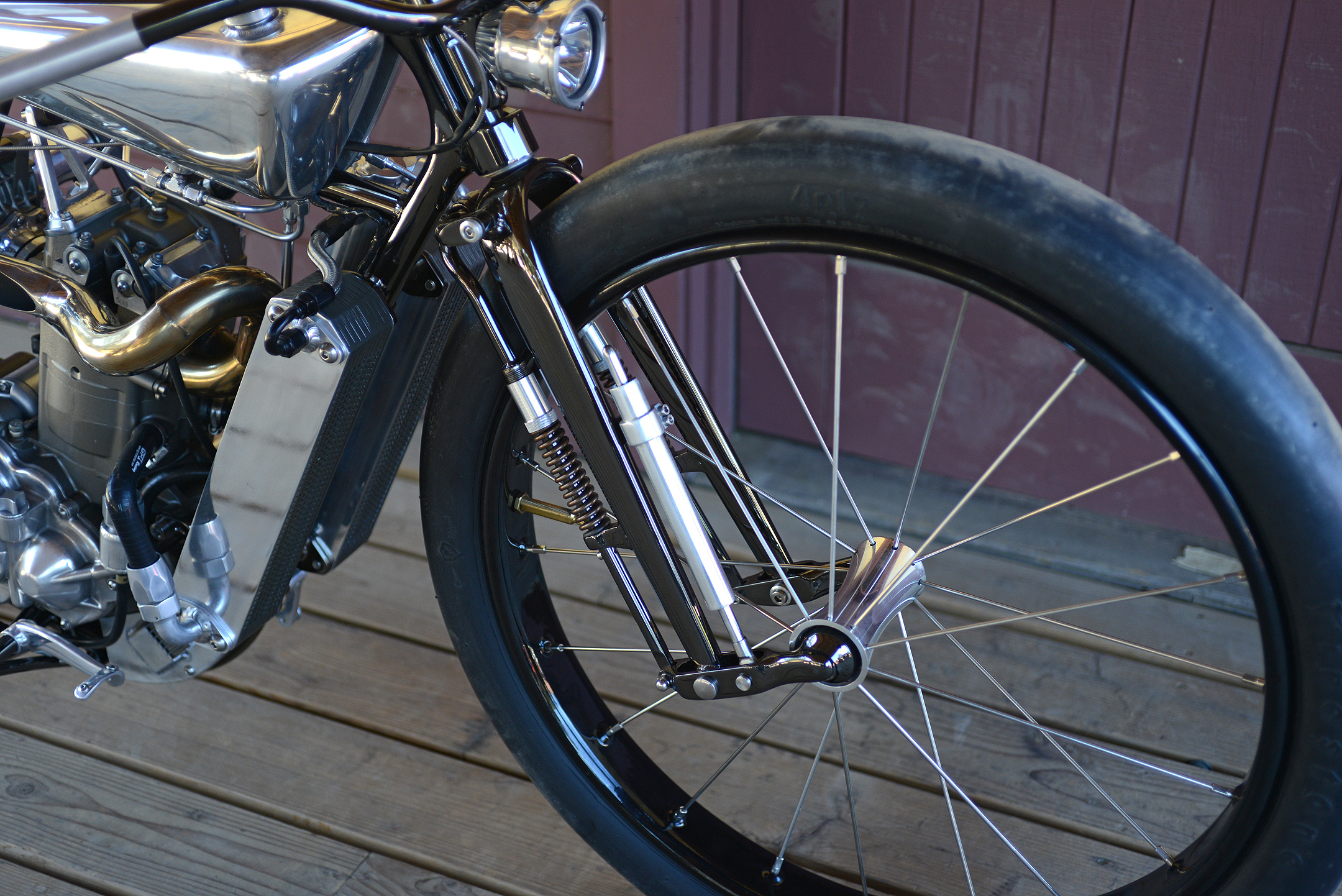

Hazan'd hand made leding ling front forks have hand screw adjusters for the ride height and are dampened by a steering damper.
