Mike LaFountain's Raccia Motorcycles 1967 Kawasaki W1 Cafe Racer
photography by By Jim Gianatsis. model Aleska Slusarchi

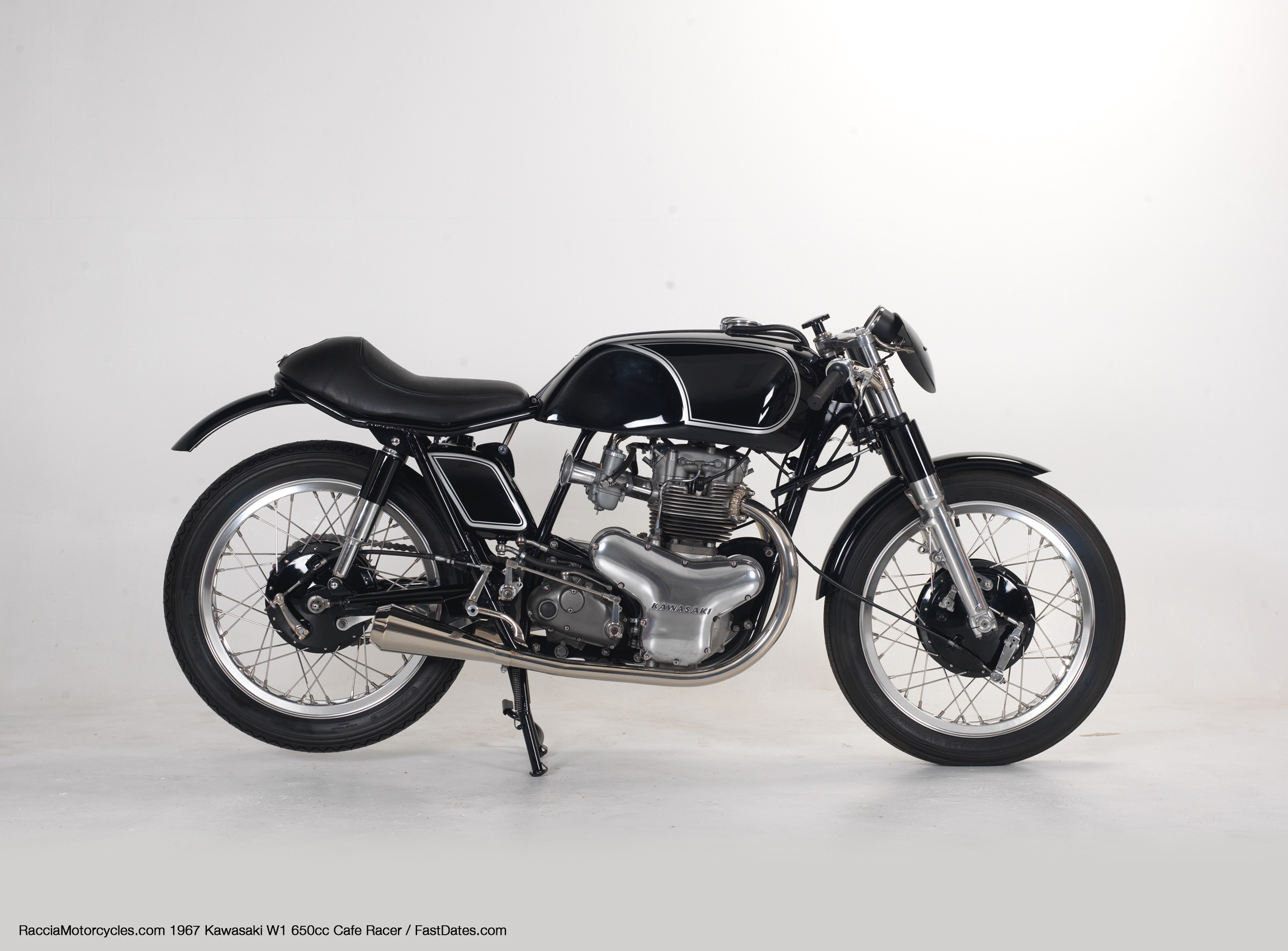

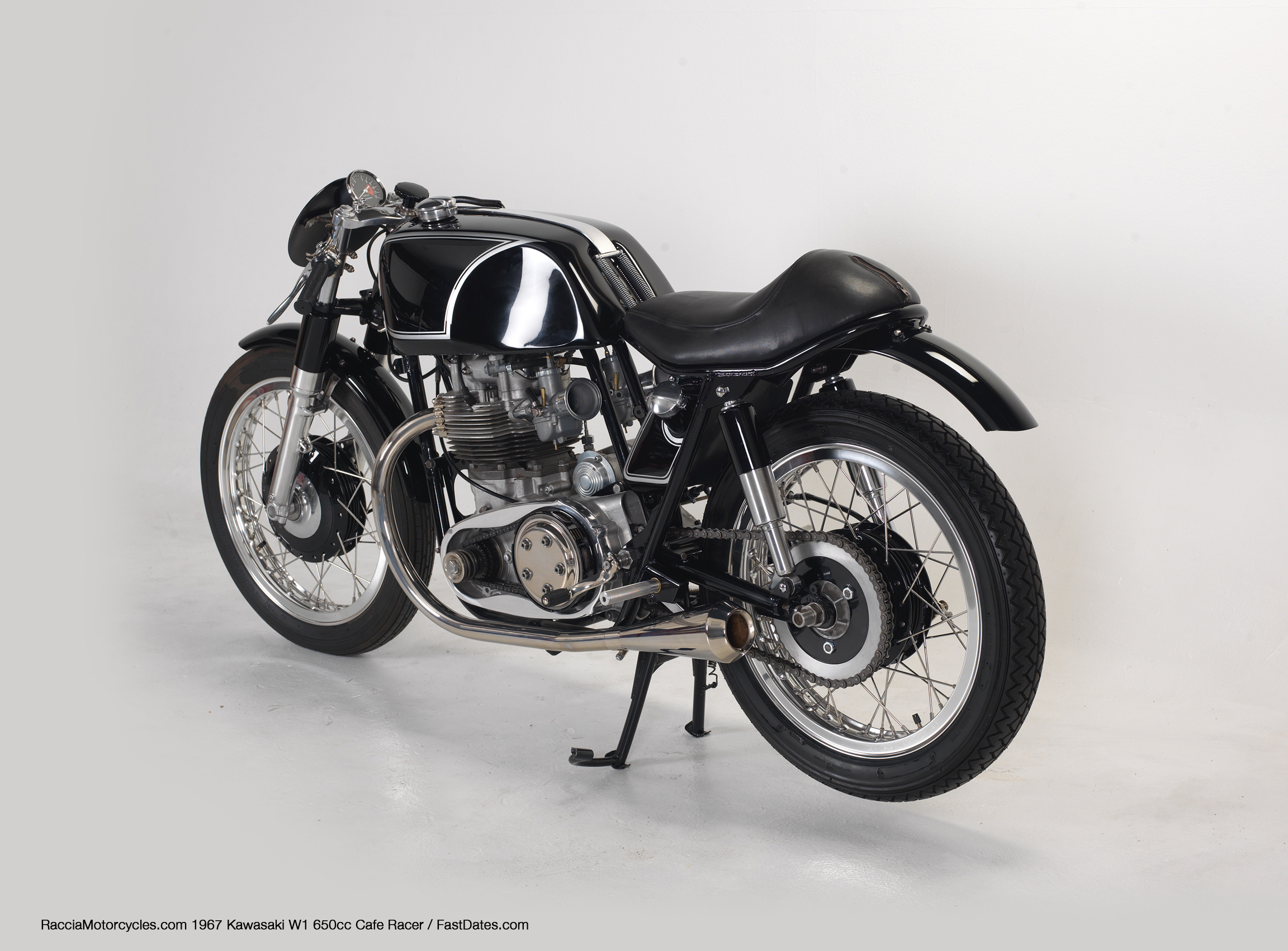

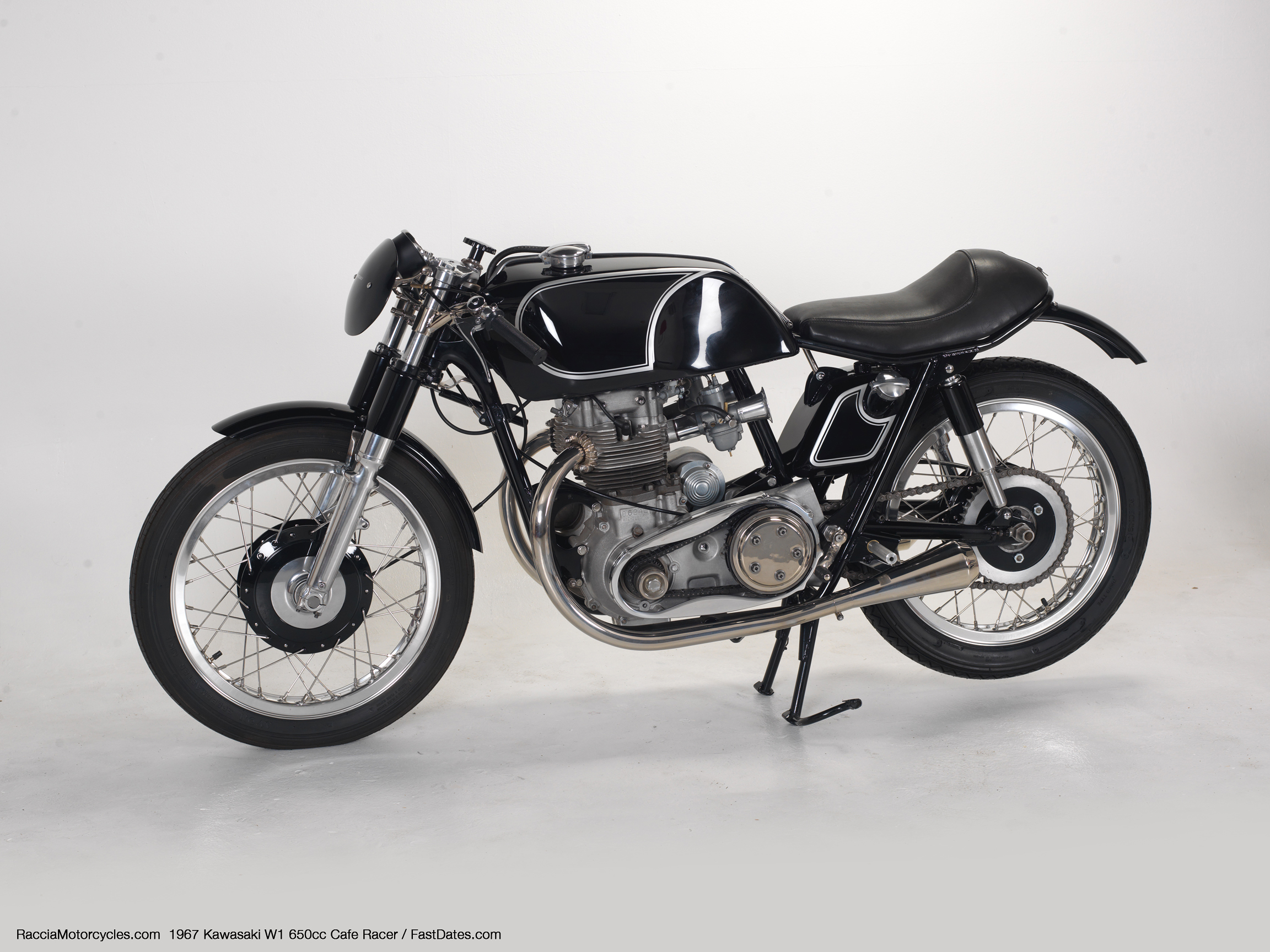

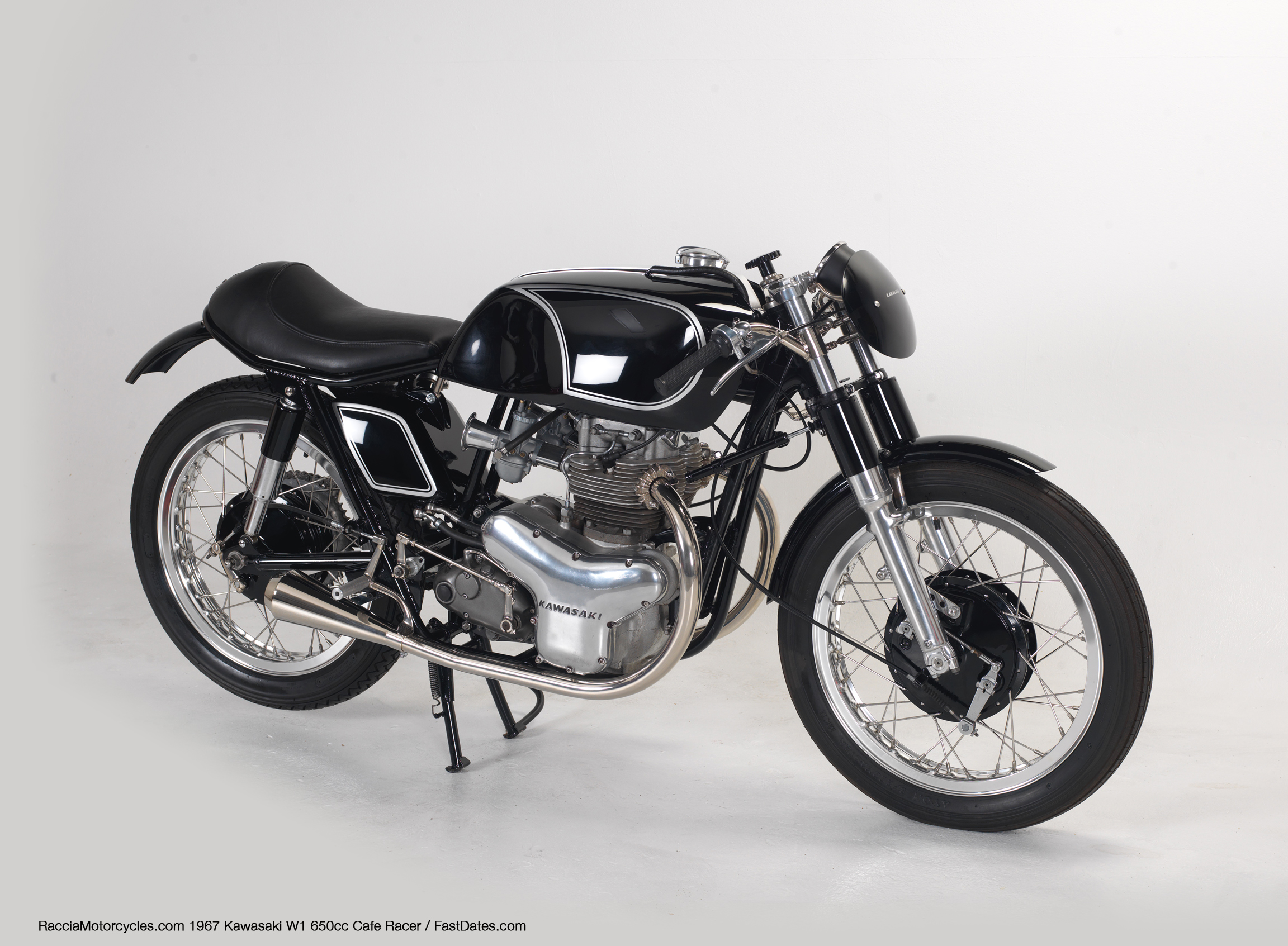

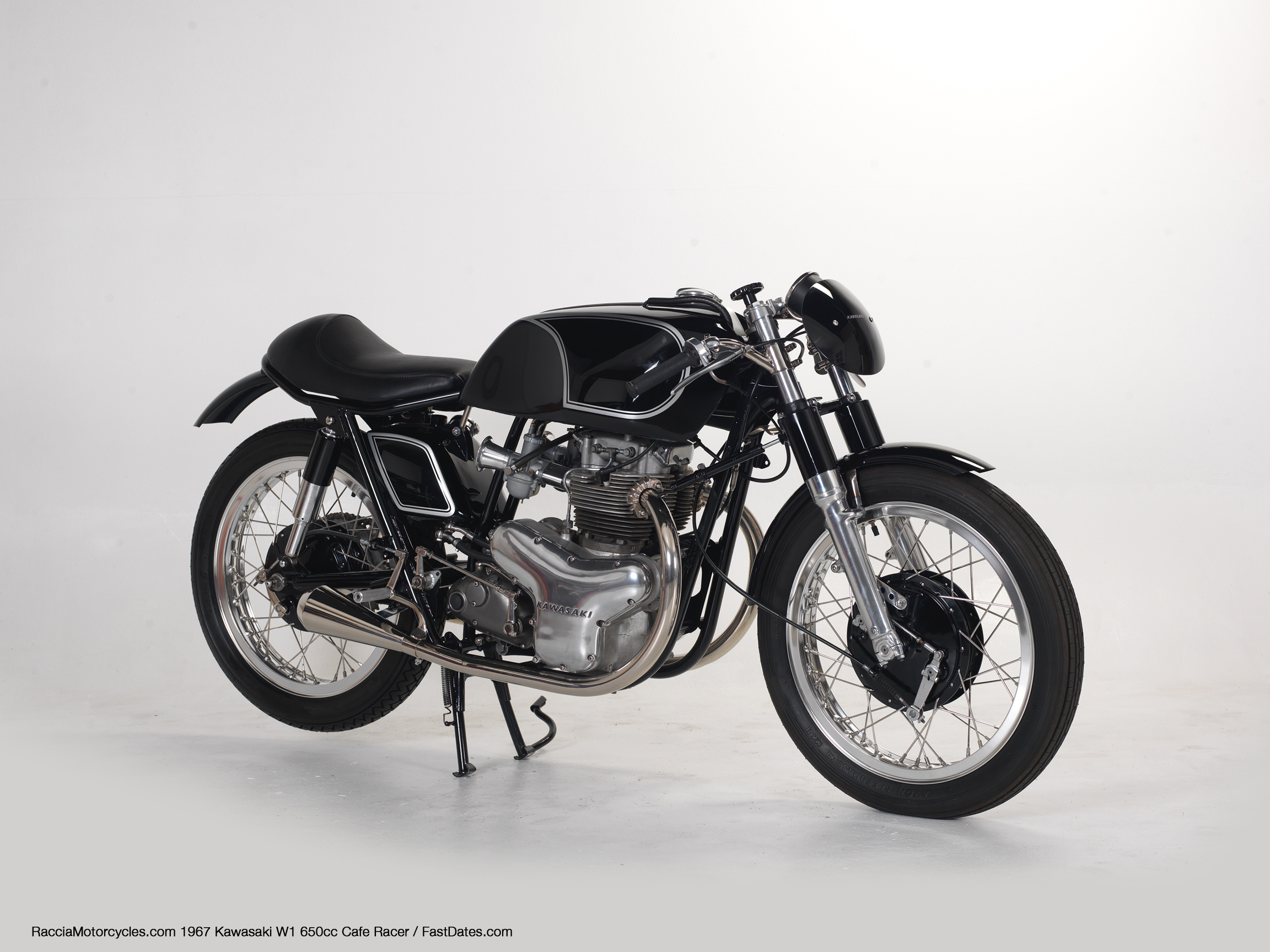

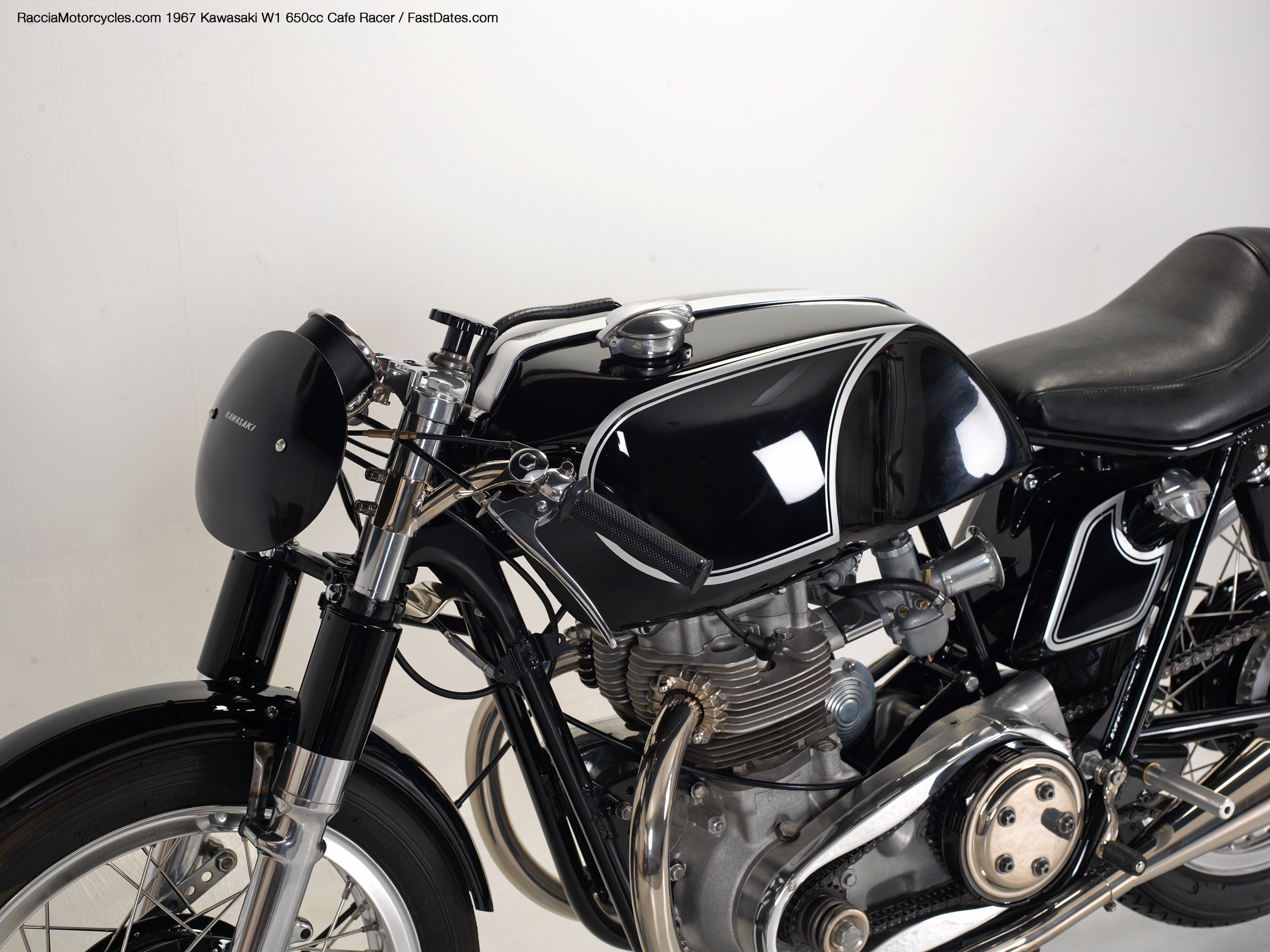

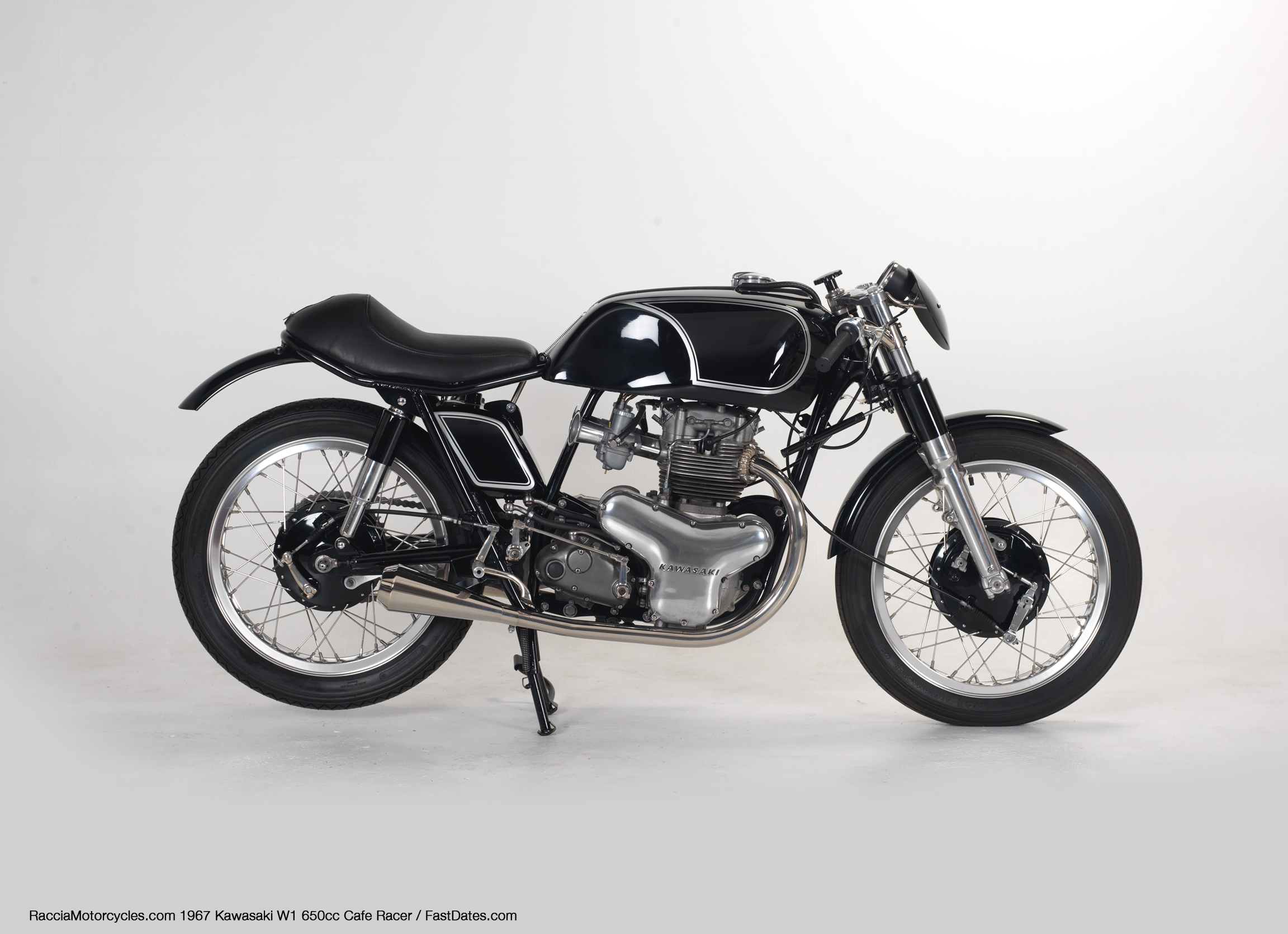

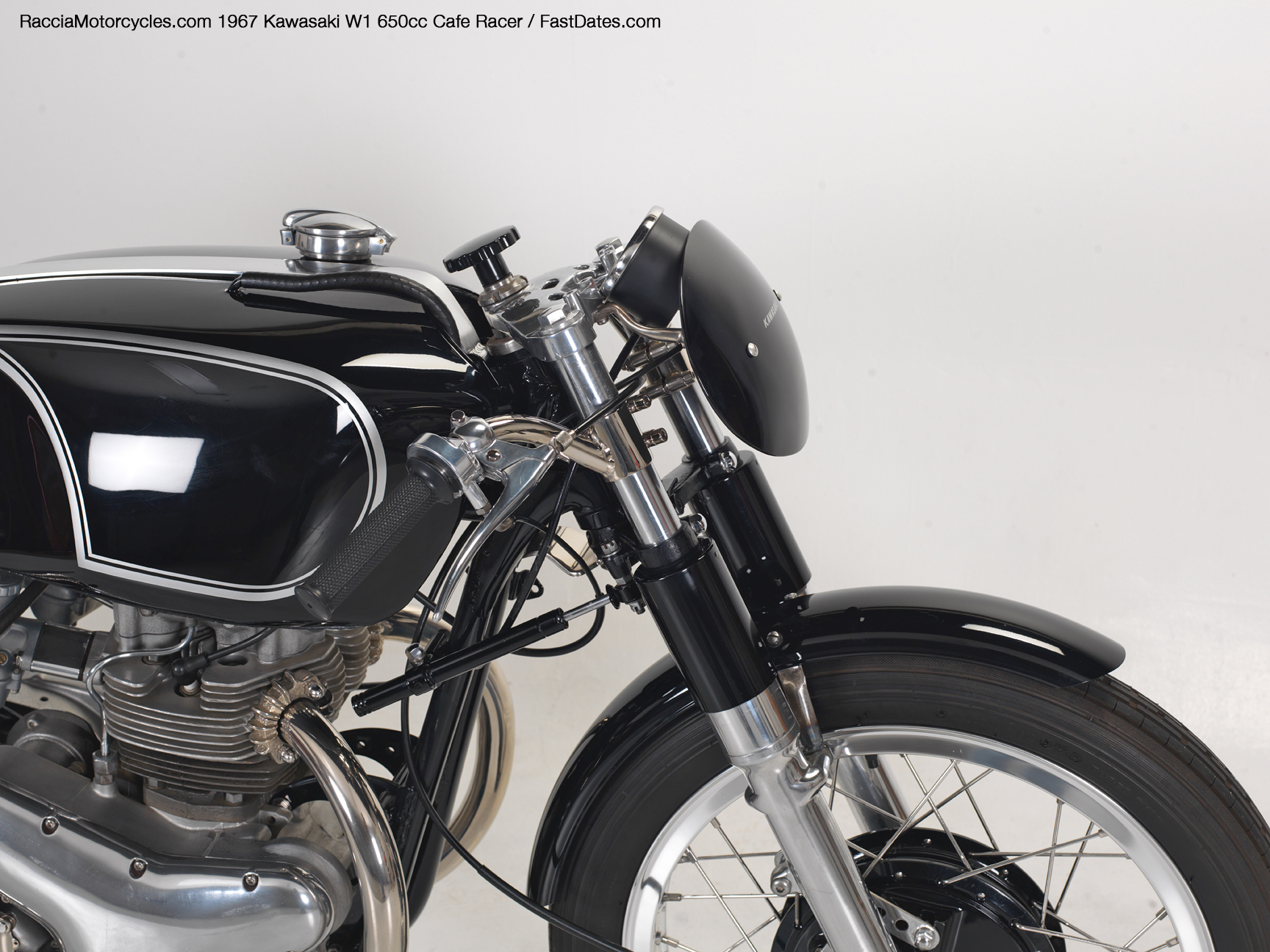

Builder Michael LaFountain at Raccia Motorcycles.com, specializes in building really cool high-end cafe racer motorcycles from classic old bikes. Michael showed up at our 2016 LA Calendar Motorcles show with this beautiful 1967 Kawasaki 650cc W1 Cafe Racer which of course, took 1st Place in the Cafe Bike / Bobber Class. Michael was excited to point out to us that all the non W1 parts on this bike, were sourced from some 20 other vintage model Kawasaki bikes, to keep it all in the Kawsaki family. I asked Mike what hi asking price for such a beautiufl machine would be and he told us in the $40,000 range which sounds more than fair to us. Chances are the future owner won't be riging it much, but we envision it being desplayed as one of the centerpeices in some extraordinary motorcycle collection. Our beautiful Calendar Kitten who we photographed with the bike for the 2018 FastDates.com Calendars is SBK Fast Dates World Superbike / Rockstar Energy Drink / Miss Makita Tool Girl Jessica Harbour.

If you are too young to know about the Kawasaki W1, it was Kawasaki of Japan's first step into the big displacement motorcycle market back in the mid 1960s by licensing British Small Arm's (BSA) non unit construction 650cc twin cylinder motorccyle motor to build in Japan and sell world wide. BSA was moving to its new unit construction 650cc motor, so it had no proble licending to Kawaski their older Non unit construct twin. Along with licensing the old engine, Kawasaki was able to improve the original designand its reliability with better oil sealing, engine bearings, more reliable Japanese electronics and Mikuni carburetors.

Michael LaFountain • Raccia Motorcycles
www.RacciaMotorcycles.com

Kawasaki W1 Design

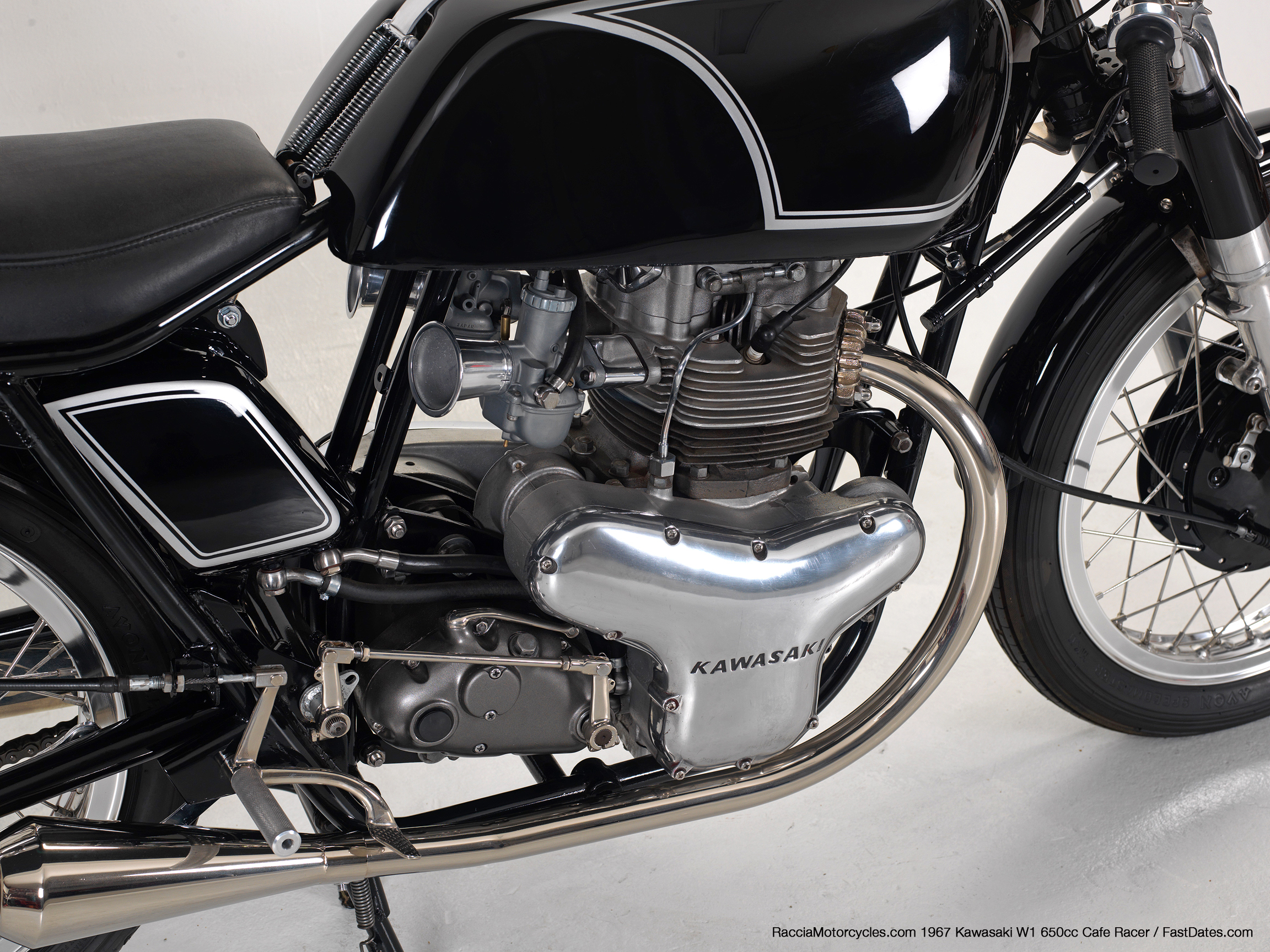

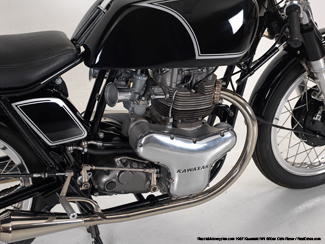

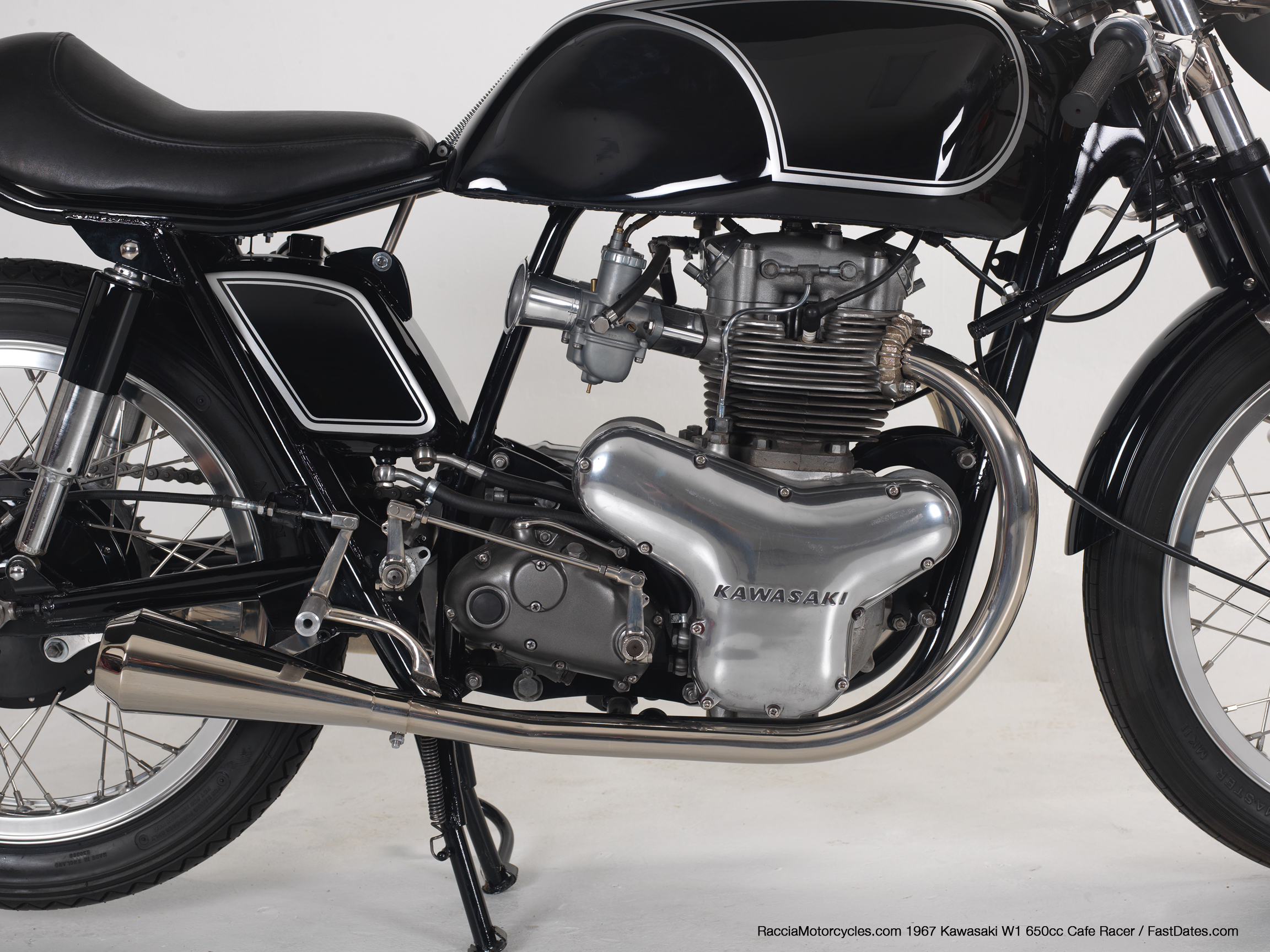

The Kawasaki W1 is based heavily on the post-war, pre-unit construction, 650cc vertical-twin BSA A7 design inherited from Meguro, but as time passed, the Kawasaki and BSA designs diverged.[ The BSA A10 (aka Rocket) engine is an undersquare design with a 73 mm (2.9 in) bore and an 84 mm (3.3 in) stroke, whereas the W1 inherited its 72.6 mm (2.86 in) stroke from the K2 engine, adding displacement by increasing the size of its bore to 74 mm (2.9 in). This slightly oversquare (i.e., short-stroke) design favors higher engine speeds, while reducing stresses on the crankshaft. In addition, the new W1 had a one-piece pressed crankshaft assembly with ball bearings and one-piece connecting rods with needle bearings, significant improvements over the earlier BSA (and Meguro) engines that used plain insert type bearings and two-piece connecting rods. Even though the BSA and Kawasaki 650cc engines were mechanically different from each other, visually they gave very much the same impression.[16]

Likewise, in the design of its twin-loop frame, as well as its overall styling, the W1 motorcycle was clearly influenced by classic British road bikes, including shifting with the right foot and braking with the left. From 1966 to 1968 W1 engines were built with a single 31 mm Mikuni carburetor (this is only feasible in a straight-twin with a 360° crankshaft angle). Starting in 1968, the W1SS with two 28 mm Mikuni carbs took the place of the original W1. Also in 1968, the W2 (aka Commander) emerged. The W2SS was a restyled W1SS with slightly more horsepower, and the W2TT was a high-pipe version with twin mufflers on the left side. Due to flat sales in North America the W2TT was discontinued in 1969, the W2SS ended in 1970, and finally in 1971 Kawasaki axed the W1SS.

The 650 remained popular in Japan, and although some were exported to Europe in the 70s, subsequent models were produced primarily for the domestic market. The penultimate model in the W series was the W1SA with stylistic changes, but most importantly with the gearshift lever on the left side and the rear brake pedal on the right side, which is the standard configuration for Japanese motorcycles. The final version was the 1973 W3 model (aka RS650) with upgraded suspension as well as twin disc brakes in front. W series production ceased in 1974.[3][18][19]

The Kawsaki W1'sCompetition
As soon as the W1 was released, Kawasaki realized that even an improved version of the BSA A10 (itself already discontinued) was at a disadvantage against the newer and faster unit construction British twins, the BSA Spitfire and the Triumph Bonneville T120. The W1 also had to compete with other Japanese twin-cylinder street bikes, such as the Suzuki T500 and the Honda CB450. If the W1 was seen as being behind the times, then Kawasaki came back with a two-stroke engine that was clearly ahead of its time, the 1967 A7 Avenger with performance at least equal to the W1. The following year the W series (as well as the British bikes) faced a new competitor in a state-of-the-art twin from Yamaha, the XS650

In 1968 the domination of the inline-twin engine for high-performance street bikes came to an end when Triumph Engineering developed an inline-triple engine for the BSA Rocket 3/Triumph Trident. The 1969 Kawasaki H1 Mach III with an inline-triple two-stroke, and the Honda CB750's Inline-four engine into the bargain, foreshadowed the ascendancy of multi-cylinder engines. The W series engines were oil-tight and reliable, but by comparison they had low levels of performance with high levels of vibration, and were ultimately unsuccessful on the sales floor. At the same time that production of the W series was ending in Japan, Kawasaki came up with a formula for successful four-stroke street bikes in its Z series.

Return to Calendar Bike Garage Index

Look for all our Calendar Bikes in the FastDates.com Calendars. Click to Order

Kawasaki and BSA
In 1960 the Akashi-based Kawasaki Aircraft Company acquired an interest in the Meguro motorcycle company, which had obtained a license to produce a copy of the 500 cc BSA A7. Meguro had been Japan's largest motorcycle manufacturer but in the late 1950s its models had become less competitive and it was short of money. Kawasaki's investment enabled Meguro to launch its A7 copy as the Meguro K

The BSA A7, Meguro K and their respective derivatives have an overhead valve (i.e., pushrod) straight-twin engine with a pre-unit construction architecture. All have a 360° crankshaft angle, which provides an even firing interval between the two cylinders but high vibration caused by the two pistons rising and falling together.[13]

In 1963 Meguro was taken over one hundred percent by the new Kawasaki Motorcycle Corporation, which maintained the licensing agreement with BSA and continued to build the K model, but due to lubrication problems Kawasaki made engine modifications and the Kawasaki K2 entered production in 1965 with improved crankshaft bearings and a larger oil pump. Since the introduction of the K2, the Meguro K model has tended to become known retrospectively as the K1.

The K2 has a larger timing cover which distinguishes it from the model K and the BSA A7. Also the K2 chassis has a different rear subframe, fuel tank and side panels. These changes gave the K2 a typically conservative Meguro image, dissimilar to the original BSA A7.

In 1965 the K2 was enlarged to 624 cc to become the Meguro X-650 prototype, which was displayed at the 1965 Tokyo Motor Show. The X-650 then became in turn the prototype for the Kawasaki W1.[2] For the new Kawasaki big bike, the traditional look of Meguro motorcycles was replaced with a sleeker fuel tank, sportier mudguards (fenders) and other details intended to appeal to export markets, especially North America.[1][15]

The Society of Automotive Engineers of Japan (Japanese), includes the 1966 Kawasaki 650-W1 as one of their 240 Landmarks of Japanese Automotive Technology.[5]
