Ducati Corse Superbike 1198F09

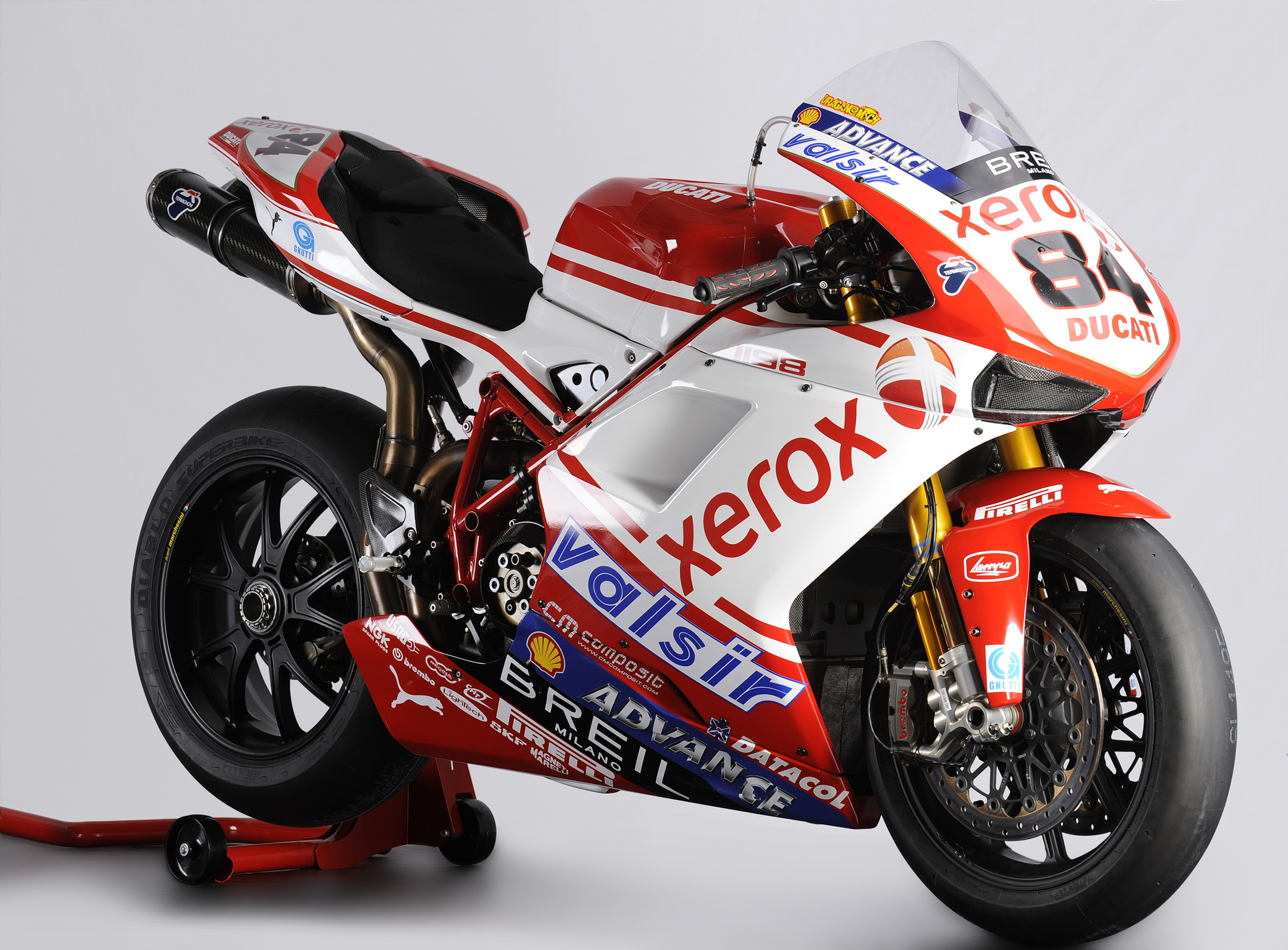

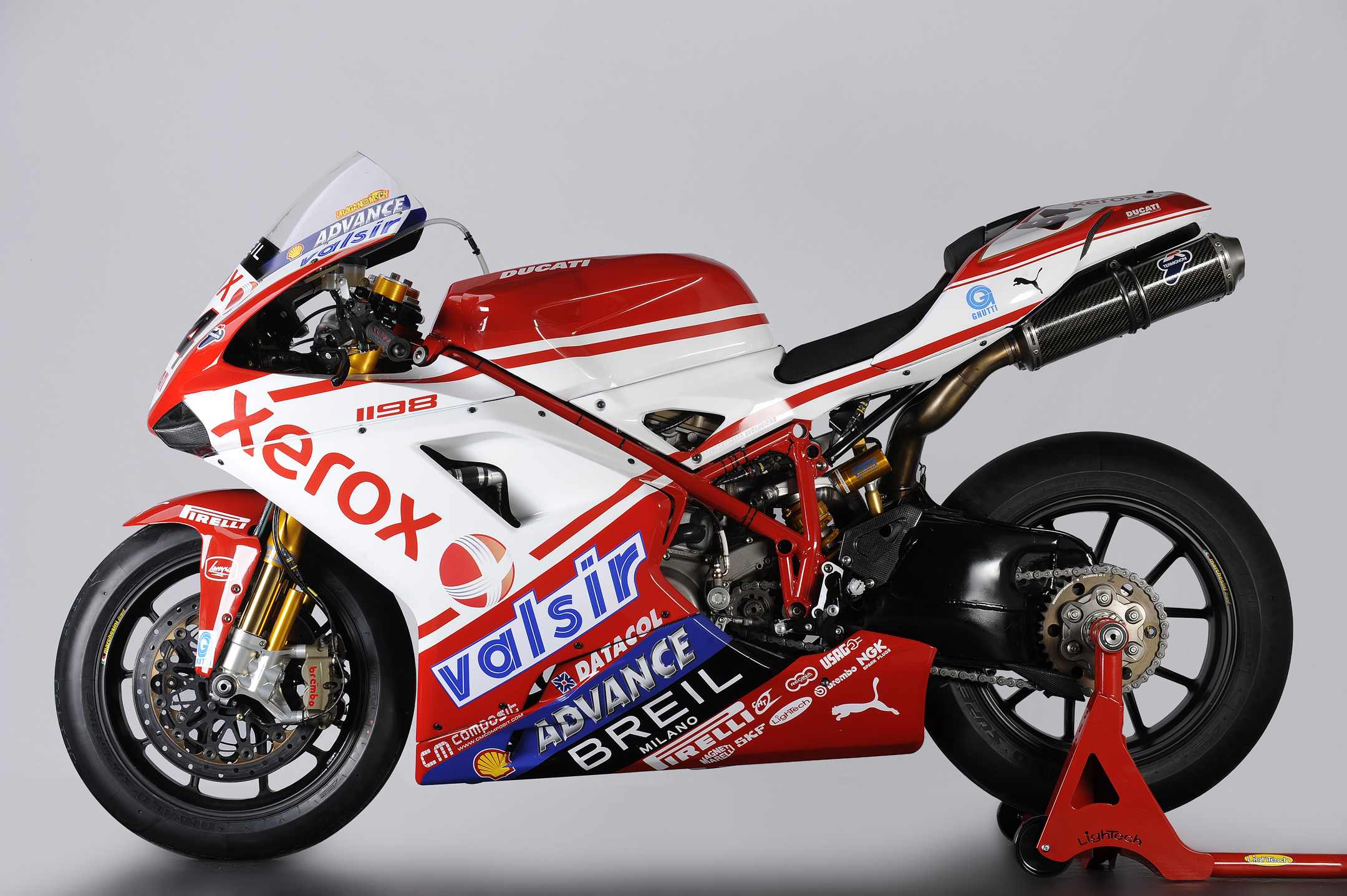

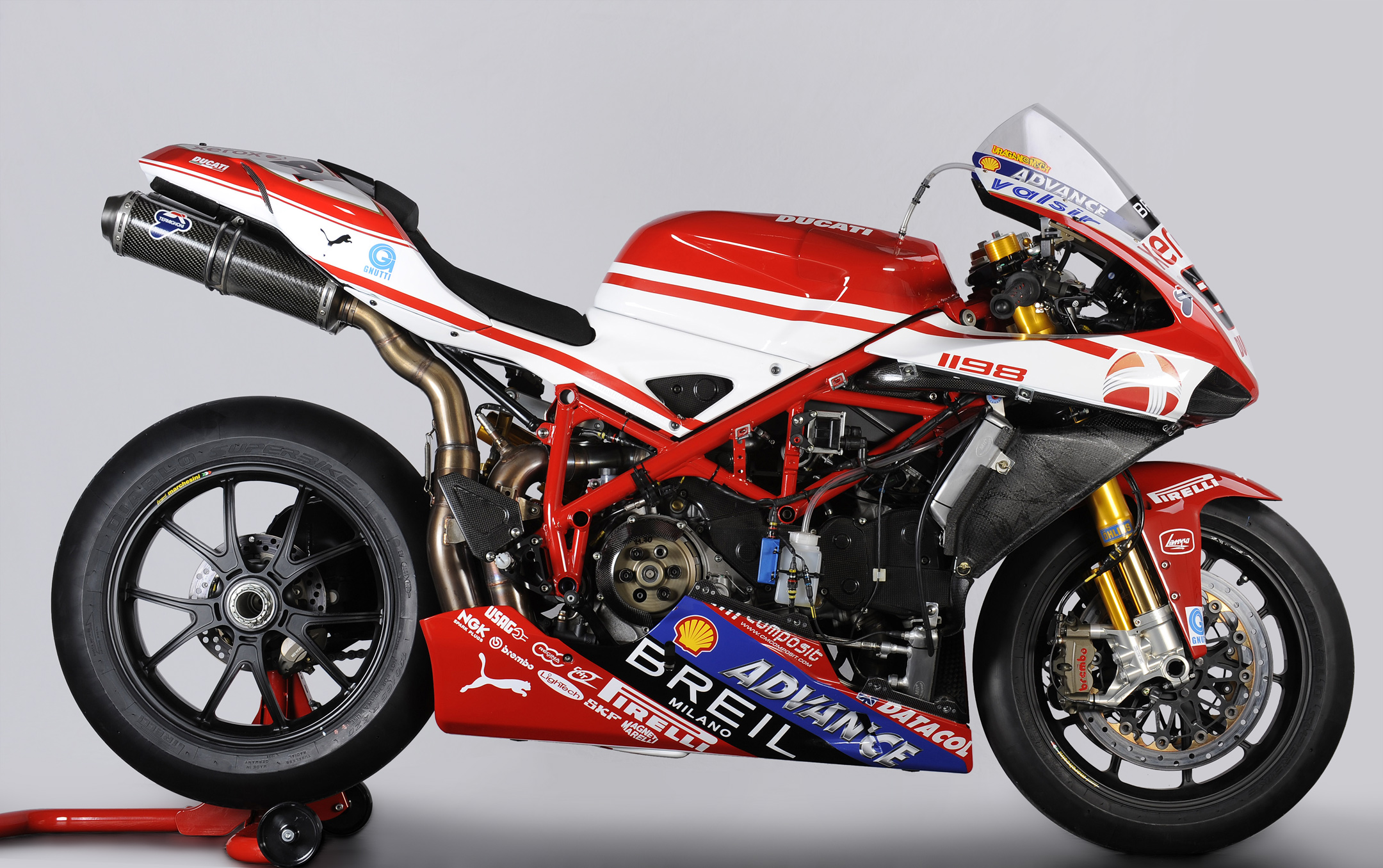

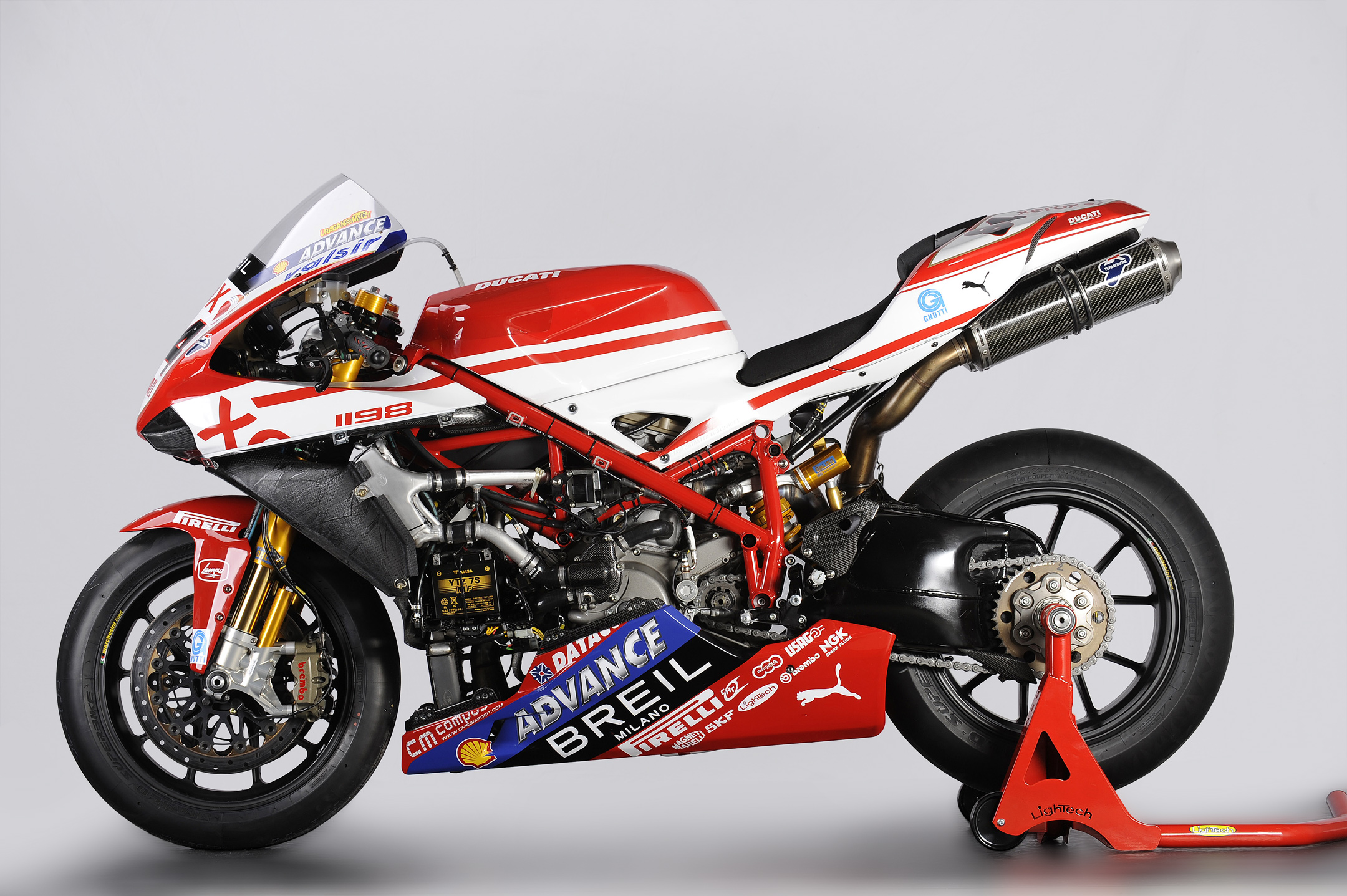

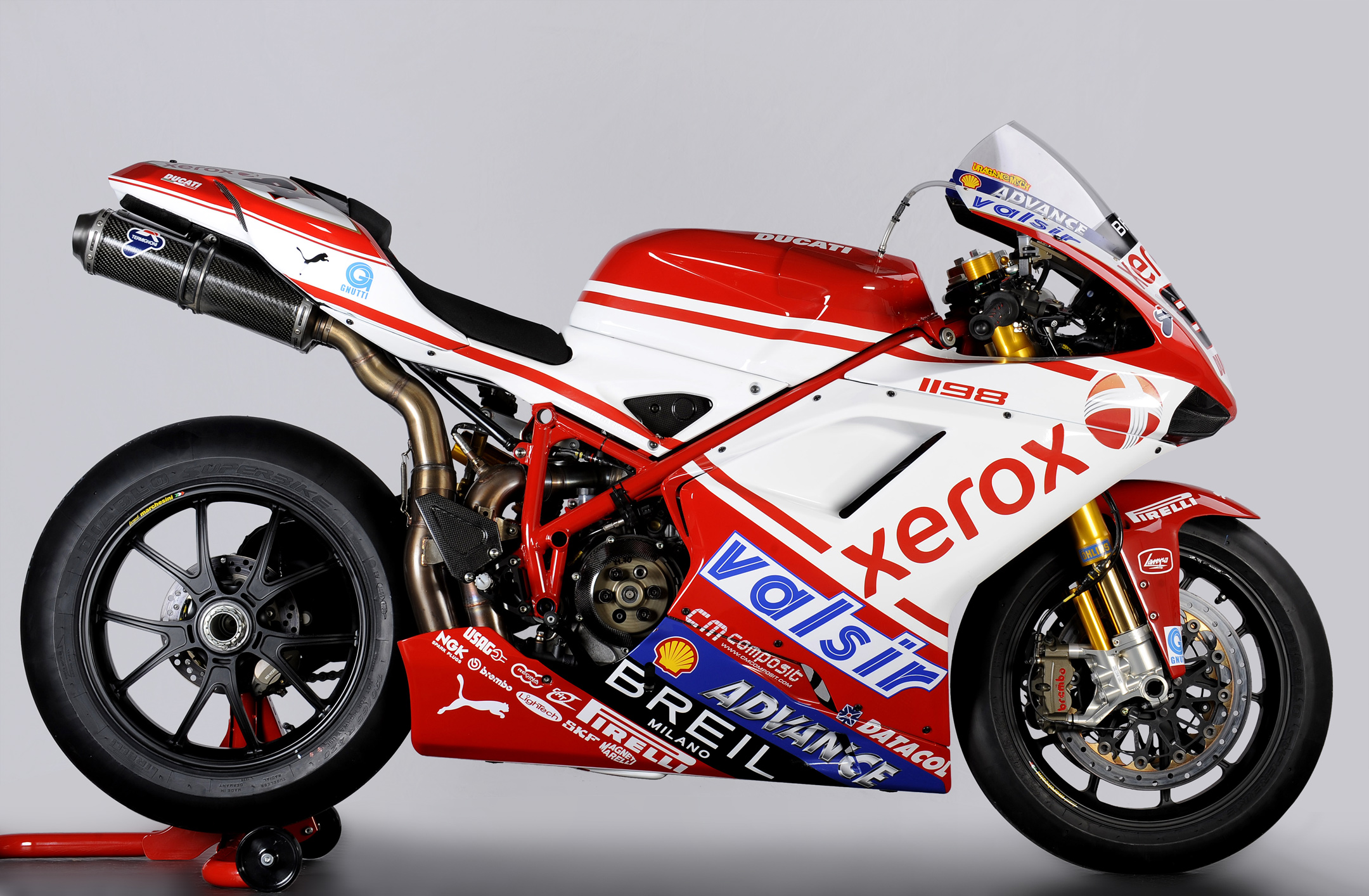

February 1, 2009 - This 2009 Ducati Corse World Superbike called the 1198 F09 (denoting Factory bike 2009) is essentially the same year 2008 model 1098F08 which Troy Bayliss rode to win the 2008 SBK World Superbike Championship, Troy's 3rd World Championship title, won with on 3 different model generation of bikes - the 998/996, the 999, and the 1098/1198.

As is usual in Ducati marketing nomenclature, the factory race bike in 2008 actually displaced 1198cc like its1098R homologation production bike, but both bikes in 2008 were called "1098" models to tie-in to the standard production model 1098cc Superbikes of that year. For 2009 Ducat's standard production model Superbikes all got larger 1198cc engines, so for 2009 the factory Corse bikes also are now named after their true displacement - 1198F09. The only customers getting kind of short sheeted are the 2009 model 10908R Troy Bayliss Commutative World Championship Replica buyers so their 1198cc bikes are named after the model troy won on the year before.

The new World Superbike rules for 2008 which allow Ducati and other V-Twin manufacturers to run 1200cc 2-cylinder bikes in the 1000c 4-cylinder class has supposedly restricted Ducati to running bikes. or engines, which are supposedly closer to stock than ever before. When it comes to Ducati, though, stock is a relative indefinable term. A 2009 base model Ducati 1198 with base Ohlins Suspension will cost you about $22,000 retail, while the 2009 1098/1198R will cost you $43,000 for a higher spec Ohlins rear sock, a full Termignoni racing exhaust system and hotter cams and titanium rods and valves.

But still, if you want to go racing competitively in National or World Superbike you need to go order an 1198RS model for somewhere between $80 -90,000 that looks a runs much like the factory team 1198F. The extra $40,000 in goodies include the $12,000 Ohlins TTX front forks, and hand fabricated more rugged and lighter aluminum swingarm, an oversize aluminum fuel tank to finish a 45 minute race, plus hand laid up carbon fibre bodywork, higher revving cams and ignition system. What the factory 1198F09 has over the 1198RS model, well Ducati Corse has never really told anyone, but just assume it is a season ahead in development over the RS model they are selling now. Not that that's a bad thing, since it the past privateer riders on RS bikes like Frankie Chili and Max Biaggi have shown they can beat the factory bikes.

With Troy Bayliss retirement from World superbike after the 2008 season, the 2009 factory Ducati Corse team continues with Bayliss' team-mate, the Italian rider Michel Fabrizio, and thirty-three year old Japanese rider from Nagoya.

TECHNICAL SPECIFICATION: DUCATI 1198

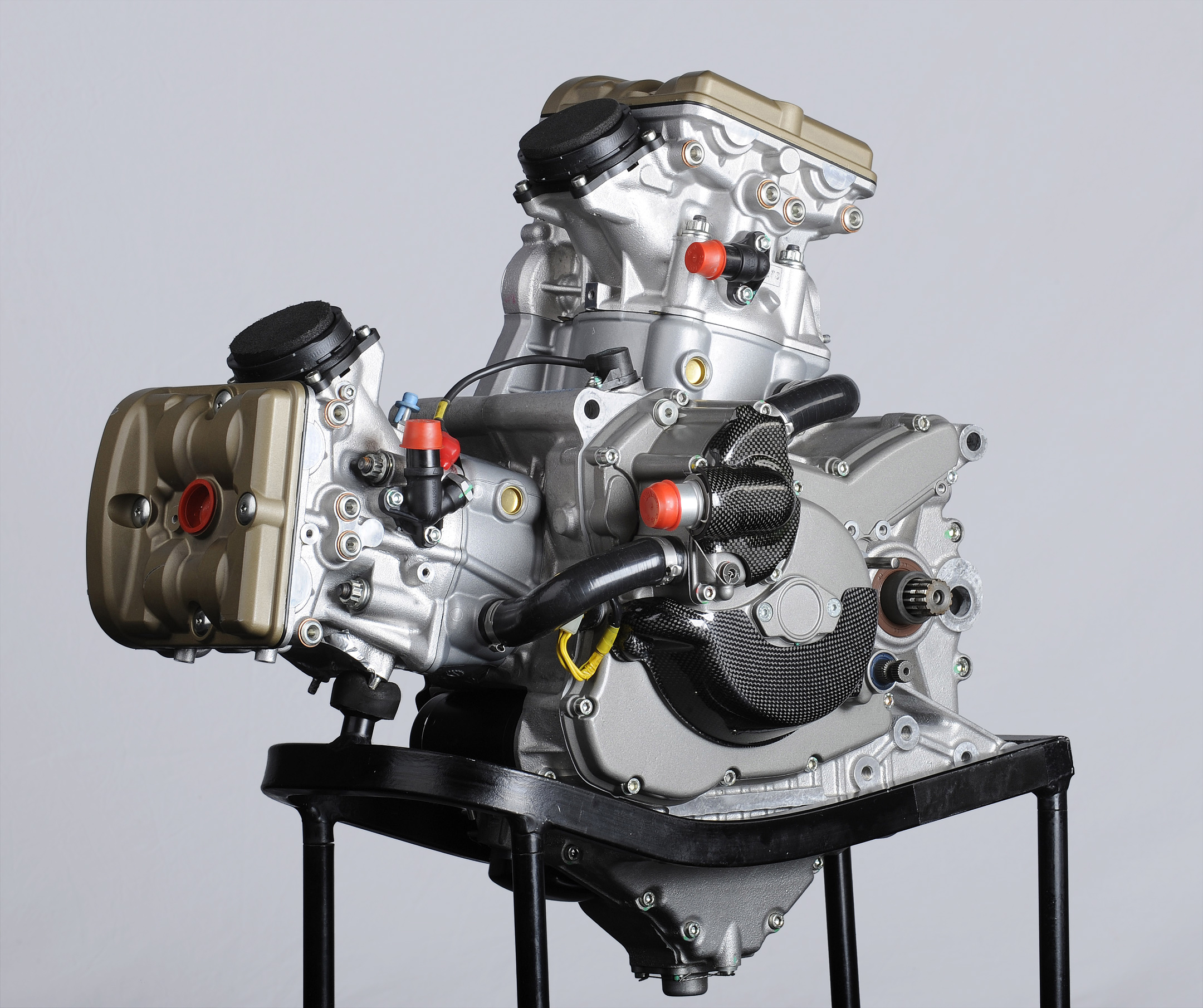

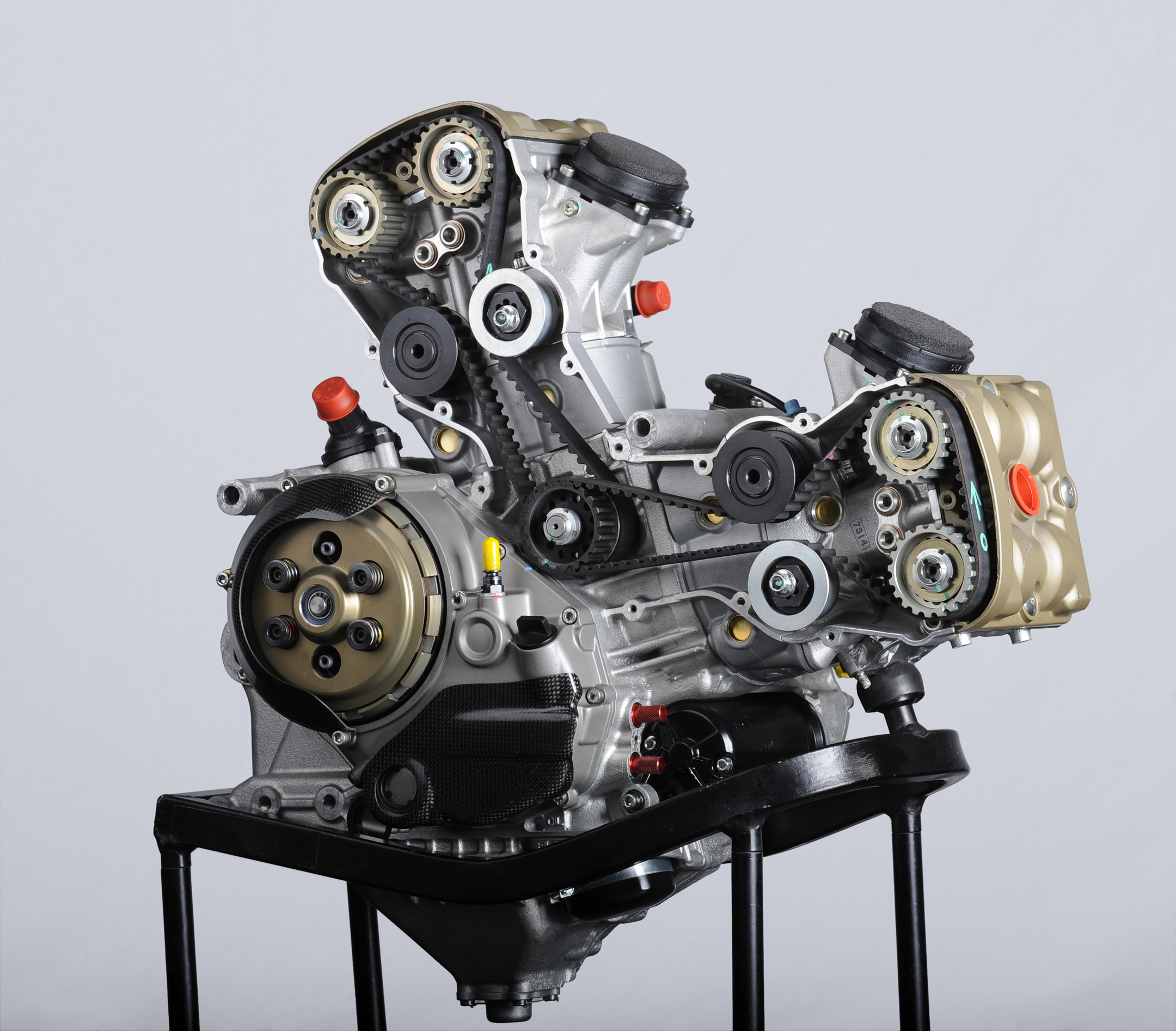

Engine ‘Testastretta evoluzione’
Type: 4-stroke L-twin 90°
Capacity: 1198cm³
Bore x Stroke: 106mm x 67.9mm
Timing system: Desmodromic, 4 valves per cylinder
Cooling system: Liquid cooled
Engine management: Electronic Ignition-injection ECU Magneti Marelli Marvel4
Fuel injection: Magneti Marelli electronic injection system, elliptical throttle bodies with air-restrictor below the butterfly 50mm equivalent diameter*
Injectors: Magneti Marelli IWP162+IWP189, twin injectors each cylinder
Exhaust system: Termignoni stainless steel 2-1-2 with two stainless steel/carbon mufflers.
Final drive: Regina chain
Power: 200CV** at 11000rpm at the crankshaft.
Maximum speed: >310km/h
Lubrication: Gear oil pump with oil cooler

Chassis
Frame: Tubular steel Trellis frame
Suspension: 43 mm pressurized TTX20 upside-down Öhlins fork, Single-side aluminium swingarm, with Öhlins TTX36
shock absorber
Wheels: Marchesini magnesium forged wheels 3.50x16.5’’ front and 6.25x16.5’’ rear

Trasmission
Gearbox: 6 speed, straight cut gears
Clutch: Dry multiplate slipper clutch with hydraulic control

Brakes
Front: Radial P4X34-38 caliper, two 320 Ø floating discs
Rear: Radial P2X34 caliper, one 218mm Ø disc
Fluid: Shell Advance

Tyres
Front: Pirelli slick 120/75-R420 (16,5”)
Rear: Pirelli slick 190/65-R420 (16,5”)

Overall dimensions
Length: 2055mm
Width: 680mm
Dry weight: 168kg***, with water and oil
Wheelbase: 1435mm
Fuel tank capacity: 23,9l

* variable from 46mm to 52mm or removable depending on race result managed by FIM regulation
** with Air restrictor 50mm
*** weight variable from 162kg to 171kg depending on race result managed by FIM regulation

NORIYUKI HAGA
Noriyuki Haga, also known as “Nitro-Nori”, came into the public eye on an international scale when he won the Suzuka 8 Hours endurance race in 1996 alongside American rider Colin Edwards. In that same year he scored his first World Superbike podium finish, when he accepted a wild-card ride at Sugo, his home track. The following year he triumphed in the Japanese Superbike Championship to take that title, as well as achieving four top-five finishes in the World Superbike Championship while substituting for an injured Edwards. At the 1997 Sugo round he took his first ever Superbike win.

In 1998 Noriyuki turned his attention to racing full-time in the World Superbike class, adopting the number 41 that he has used ever since. In that year he won five races and concluded the season in sixth position, despite never having seen many of the circuits on the calendar before. He went on to finish seventh in the standings in 1999 and then followed this up with a much stronger performance in 2000, when he took 4 wins and 11 podiums, to close the season as vice-champion behind title winner Colin Edwards.

In 2001 and 2003 Noriyuki moved across to the MotoGP series, racing a WCM Red Bull-sponsored Yamaha 500cc motorcycle in 2001, and with MS Racing's MotoGP Aprilia in 2003. He had two difficult seasons and finished both in a disappointing fourteenth position, his best result a fourth place finish in 2001.

2002 was a winless season in World Superbike but a return to the category in 2004, riding this time for the Renegade Ducati team with the Ducati 999 RS, saw Noriyuki in contention for the title right up until the final round. He won six of the season’s races, before eventually finishing third in the standings. This performance was repeated in 2005, this time riding for Yamaha's factory team, with ten podium places, and again in 2006 after scoring eleven podium place finishes.

The battle that Noriyuki fought against James Toseland in 2007 led to the closest championship finish to date, a year in which Noriyuki clocked up six race wins and fifteen podium places, including the double win at the final round of the season in Magny-Cours. Despite all this, he still had to settle for second place, just two points behind title winner James Toseland. In 2008 Noriyuki continued on with the Yamaha Motor Italia team for the fourth consecutive year, and a strong set of results that included a double win at Nurburgring and Vallelunga meant that he closed the year in third position behind second-placed man and team-mate Troy Corser, and Troy Bayliss (Ducati Xerox), crowned World Champion in 2008 for the third time. Noriyuki replaces the now retired Troy Bayliss in the Ducati Xerox Team in 2009 and is hungry for a championship title, having finished second or third in the standings for the last five years.

Nationality: Japanese
Age: 33
Date of birth: March 2nd 1975
Place of birth: Nagoya (Japan)
Height: 168 cm
Weight: 65 kg
Marital status: Married to Yurie with two children Akito and Ryota
Hobbies: Watersports, golf, spending time with family and friends
Race number: 41



Return to Iron & Lace Garage Index



MICHEL FABRIZIO
Rome-born Michel Fabrizio, aged 24, continues with the Ducati Xerox Team for a second consecutive season in 2009 and looks to improve on his eighth place result in the 2008 Superbike championship standings.

Michel began racing seriously in 1999 at the age of 15, when he took part in the Honda Trophy events and was almost immediately on the podium after just two races. The next couple of years saw Michel emerge with a series of wins and titles in the Coppa Italia (2000) and Challenge Aprilia, Supercampione and Sport Production categories (2001).

In 2002 Michel arrived on the world scene when he was given a ride on a Gilera in the 125 GP championship but results were disappointing and he was only able to score a handful of points. Team Alstare Suzuki Italia then offered the young Italian rider the chance to race in the European Superstock category in 2003 and he immediately found his feet, repaying the faith shown in him by taking the title at the age of 19, winning four of the season’s nine rounds. In 2004 Michel moved back to the World Road-Racing Championship, but this time on a WCM machine in the MotoGP class. The year was unfortunately not an easy one for Michel who finished in twenty-second position. Hopeful of greater success in the World Supersport championship, Michel signed with Team Italia Megabike for 2005 and rode his Honda to the podium on five occasions, including second place finishes at Brno and Brands Hatch. He closed the season in fifth position overall.

This was followed in 2006 by a move up to the World Superbike category where Michel rode the Honda CBR 1000RR as part of the DFX Corse team, where he then remained for the 2007 season, finishing both seasons in eleventh position. In 2006 he stepped up to the podium at Assen (third place) and Brno (second and third place), the Brno results all the more impressive bearing in mind that Michel was racing with a broken collarbone, and in 2007 he returned to the Brno podium, with a third place finish, his only top three finish that season.

In 2008, his debut season with the Ducati Xerox Team, Michel was on board a Ducati - the 1098 F08 - for the first time and got off to a good start, scoring his first podium place at Phillip Island, Round 2. In what was his best World Superbike season yet, Michel was regularly one of the front-runners and achieved seven podium finishes, including a second place in front of his home crowd at Vallelunga, another at the new Portimao track and a second and third place at Brno, the track at which he has had the most success over recent years. He concluded the championship in eighth position and will ride for the Ducati Xerox factory squad once again in 2009, confident that it will be his best year yet!

Nationality: Italian
Age: 24
Date of birth: September 17th 1984
Place of birth: Rome (Italy)
Height: 173cm
Weight: 64kg
Marital status: Married to Deborah with two children, Nicolas and Micol
Hobbies: football, cinema
Race number: 84
